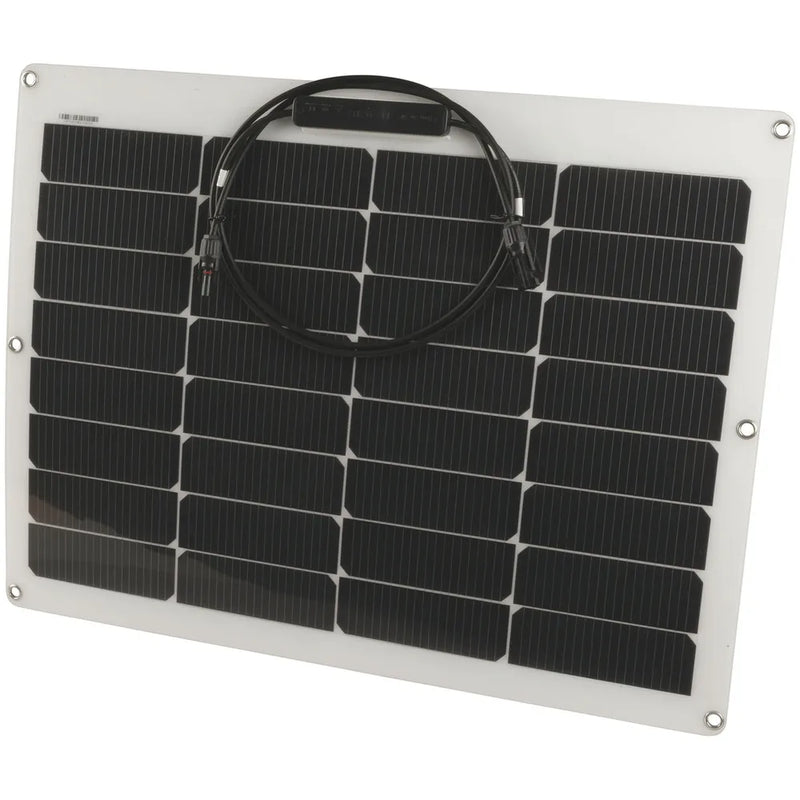

50W 12V Semi Flexible Solar Panel with DF Technology

SKU ZM9157
Original price $209.25 - Original price $209.25
Original price $209.25
$251.95
$251.95 - $251.95
Current price $251.95
1 Year Warranty

A lightweight and versatile monocrystalline solar panel designed for RV, marine and camping applications. The advanced DF cell technology produces a high conversion efficiency up to 20%, giving much more power for a smaller footprint, compared to our previous range of panels. The DF cell, identified by its 21 bus bars, is also flexible up to 30 degrees. This means you can mount the panel on a curved surface such as a boat deck or curved rooftop on your car, caravan, boat, etc.
Thanks to its lightweight design, 2.5mm thickness, and IP65 weatherproof rating, it is perfect for portable applications as well. The mounting holes allow you to secure it using rope for temporary applications or screws for permanent mounting. The short leads with MC4 PV connectors also make it easy to disconnect when you need to pack up and stow away for transport.


Solar Panel


Solar panel type
monocrystalline
Power Connector
4mm PV Connector (MC4 Style)
Bypass Diode Included
Open Circuit Voltage
20.5V
Short Circuit Current
3.55A
Voltage at Power Max
18V
Current at Power Max
2.94A

DC Voltage Rating


DC Voltage
12V

Power Rating


Continuous Power
50W

Operating Temperature and Humidity


Operating Temperature
-40°C

Product Dimensions


Length
690mm
Width
520mm
Depth
2.5mm

Packaged Dimensions


Packaged Volume
23.14026l
Packaged Weight
2.086kg
Packaged Length
71.5cm
Packaged Width
55.8cm
Packaged Height
5.8cm
Warranty: 12 Months
