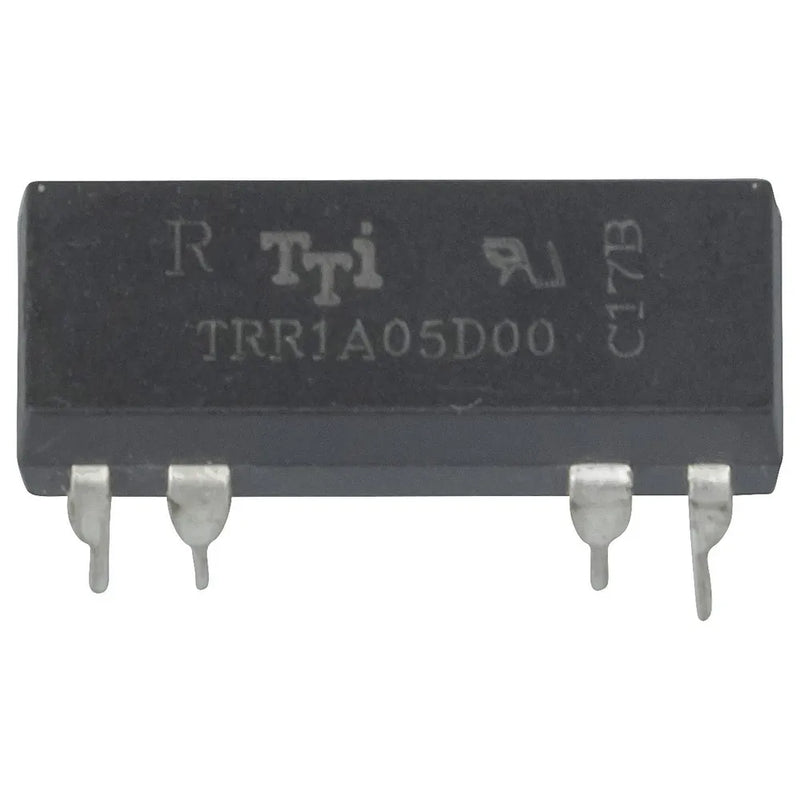

5 Volt SPST DIL Reed Relay
SKU SY4030
Original price
$6.85
-
Original price
$6.85
Original price
$6.85
$8.95
$8.95
-
$8.95
Current price
$8.95
They will fit into a 14 pin IC socket, are highly sensitive and can be driven by TTL, etc. SPST normally open.
Features:
- Must Op: 3.75VDC
- Must Release: 0.8VDC
- Contact Voltage: 18max
Relay
| Device Type | Reed Relay |
| Input | DC |
| Contact format | SPST |
| Nominal Voltage | 5V |
| Coil Resistance | 500Ω |
| Coil Current | 10mA |
| DC Contact Voltage | 5V |
| Pickup Voltage | 3.75V |
| Dropout Voltage | 0.8V |
Power Source Details
| DC Voltage | 5V |
Product Mounting
| Mounting Method | PCB |
Product Dimensions
| Width | 10.2mm |
| Length | 19.5mm |
| Height | 9.8mm |
Packaged Dimensions
| Packaged Volume | 0.00113l |
| Packaged Weight | 0.002kg |
| Packaged Length | 1.8cm |
| Packaged Width | 0.9cm |
| Packaged Height | 0.7cm |
Product Availability
| Availability | Stocked item |
