40 Pin IDC Vertical Header

SKU PP1114
Original price $1.67 - Original price $1.67
Original price $1.67
$2.95
$2.95 - $2.95
Current price $2.95

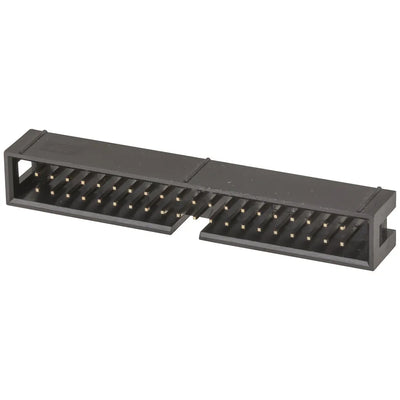

Vertical facing 40 pin IDC plug, suitable for PCB mounting.

Dimentions (mm)  PINS    A     B     C

         PP-1114       40     58.5  56   48


Header Connections


Number of Pins
40pc
Pin Material
Gold Plated
Type
Double Row Header
Device
Plug
Attachment Method
IDC
Pin Spacing
2.54mm (0.1")

Product Mounting


Mounting Method
PCB

Product Dimensions


Width
56mm
Height
48mm
Length
58.5mm

Packaged Dimensions


Packaged Volume
0.00464l
Packaged Weight
0.005kg
Packaged Length
5.8cm
Packaged Width
1cm
Packaged Height
0.8cm
