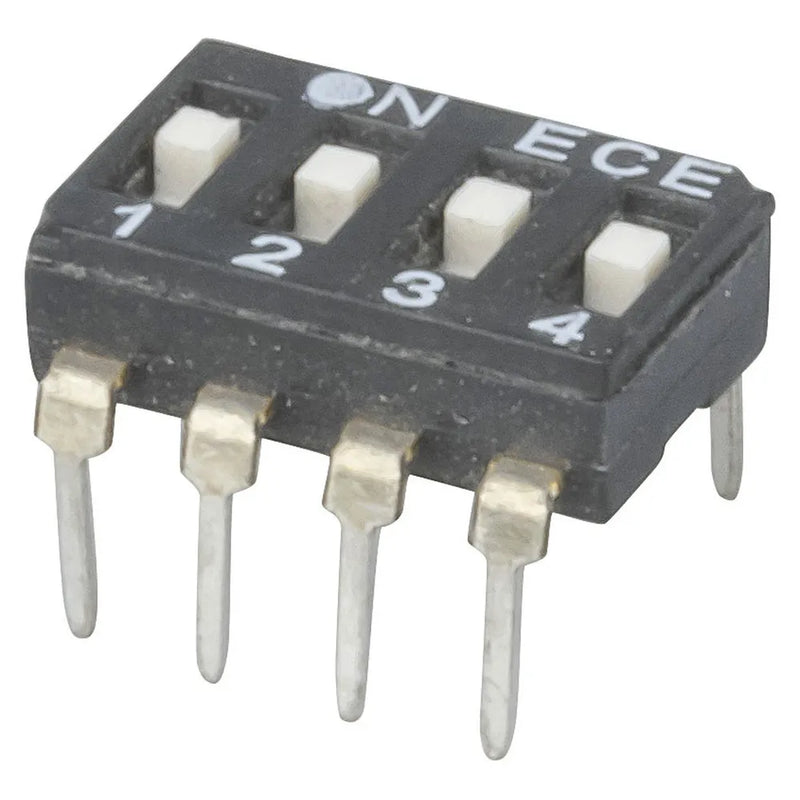

4 Way DIL 8 Pin DIL PACKAGE

SKU SM1020
Original price $2.80 - Original price $2.80
Original price
$2.80
$2.80 - $2.80
Current price $2.80

Lower profile 4way DIL switch

Features:
- Moulded 0.3 IC packing outline for automatic insertion
- Smaller sized
- Twin contact design
- Gold plated contact and tin plated terminals.


Electromechanical Switch


Switch Type
DIL
Switch Colour Coded
Black
Pole Throw Type
SPST
Poles / Contacts
8 pole
Throws / Positions
2pos
Switch Connection
PCB Pins
Contact Resistance
50mΩ
Dielectric Strength
500V
Stackable Switch

Product Mounting


Mounting Method
PCB

DC Voltage Rating


DC Voltage
24V

DC Current Rating


DC current rating
25mA

Packaged Dimensions


Packaged Volume
0.001l
Packaged Weight
0.001kg
Packaged Length
1cm
Packaged Width
1cm
Packaged Height
0.7cm

Product Availability


Availability
Stocked item
