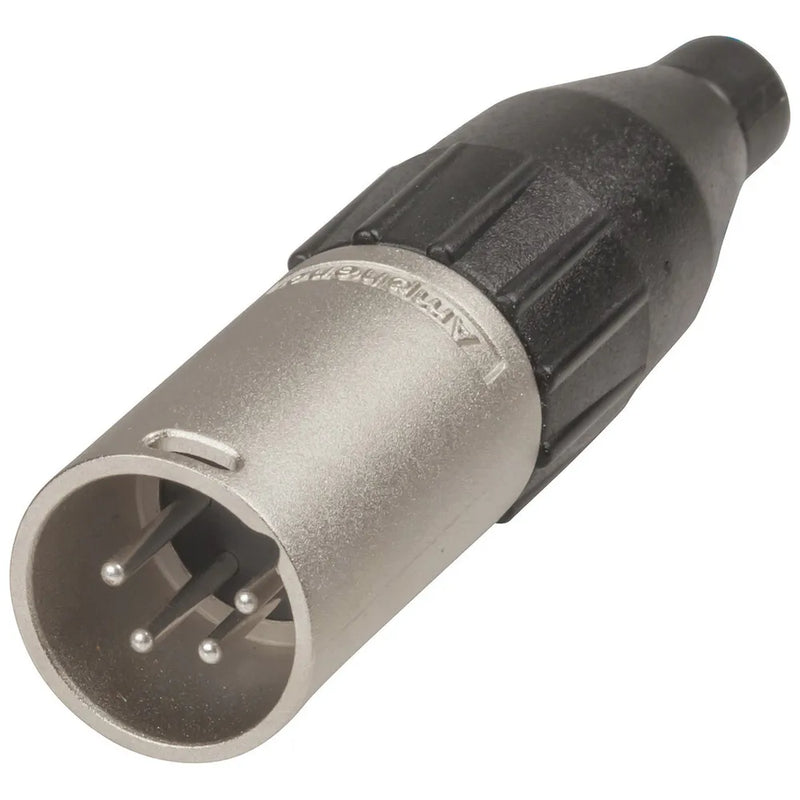

4 Pin Line Male XLR Stype Connector
SKU PP1040
Original price
$19.20
-
Original price
$19.20
Original price
$19.20
$23.95
$23.95
-
$23.95
Current price
$23.95
 XLR/4P SLV/BLK AMPHENOL LINE
- Diecast metal shell
The Standard is defined by the Audio Engineering Society inAES14-1992(r1998)
Pin 1: Shield/Ground
Pin 2: Hot/in Phase / +
Pin 3: Cold / Out of Phase / -
To create an unbalanced connection, pin 1 & pin 3 are connected to ground & pin 2 carries the signal. Note that there is a lot of equipment (particularly in the US) that has pin 2 & pin 3designations reversed (i.e. 3 hot, 2 cold).Manufacturers are adopting the Standard on all new equipment.
Plug or Socket
| Device | Plug |
| Plug or Socket Type | XLR |
| Attachment Method | Solder Tag |
| Case Material | Metal |
| Contact Material | Nickel Plated Copper |
| Colour Coded | Black |
Product Mounting
| Mounting Method | Line |
Packaged Dimensions
| Packaged Volume | 0.29383l |
| Packaged Weight | 0.036kg |
| Packaged Length | 12.6cm |
| Packaged Width | 10.6cm |
| Packaged Height | 2.2cm |
