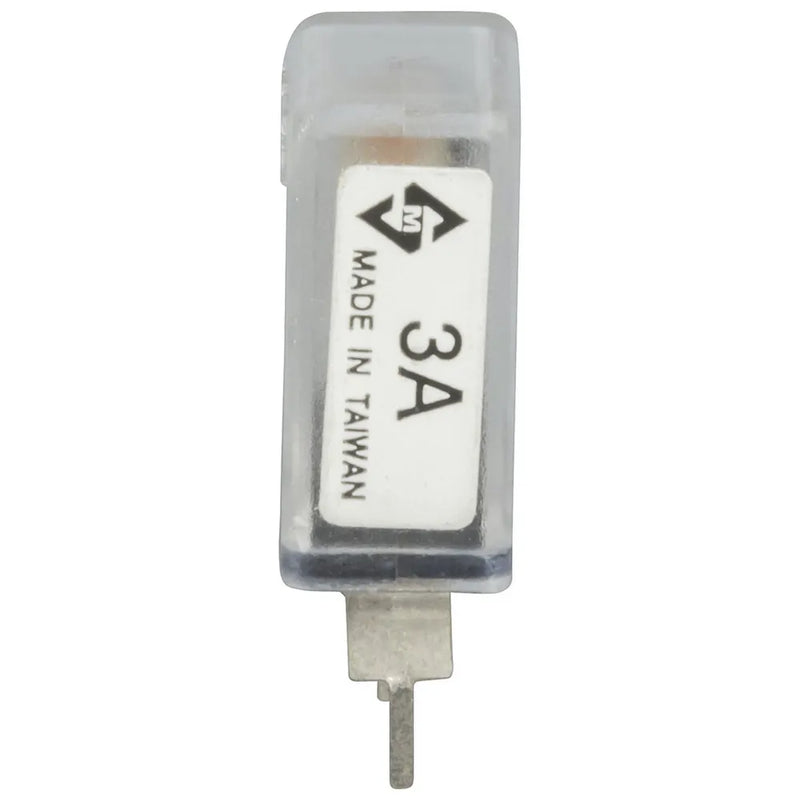

3A PCB Mount Thermal Circuit Breaker (SPST)

3A PCB Mount Thermal Circuit Breaker (SPST)

by Jaycar
SKU SF2283
$19.60 - $19.60
$19.60
$19.60 - $19.60
$19.60

Solders directly into a printed circuit board. Ideal for protecting power supplies, amplifier output transistors and other appliances. Slow response time is ideal when temperamental tripping would be a nuisance.

Features:

  • Calibration (at 25°C):
    100% of current rating; will not trip.
    101- 170% of current rating increasing likelihood of trip.
    175- 199% of current rating trip within 1 hour.
    200% of current rating within 1 minute.
    +200% of current rating from 1 minute to seconds.
  • Contact Resistance: 0.12ohms
