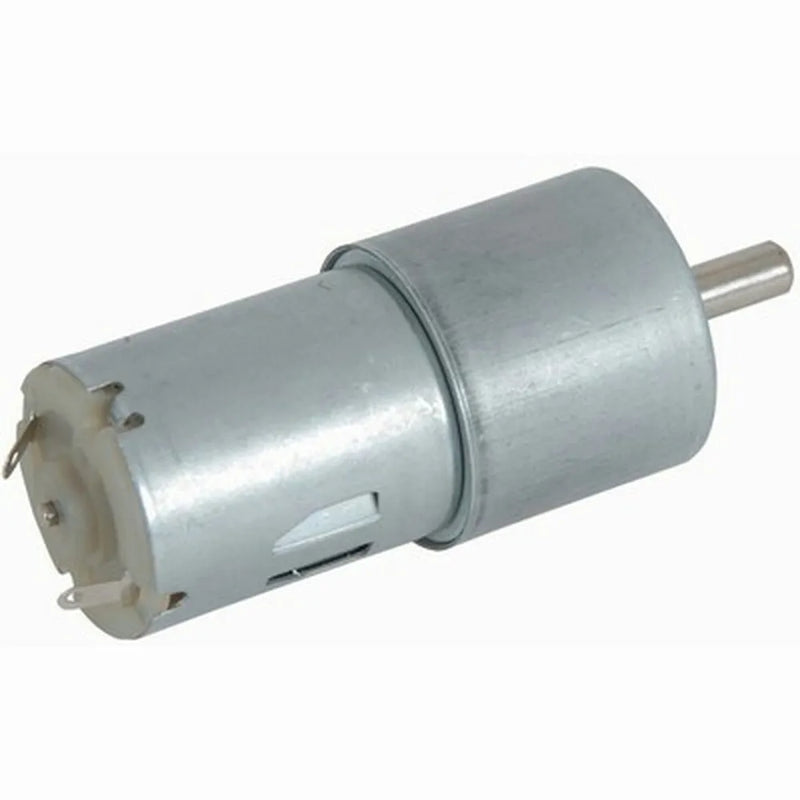

36RPM 12VDC Reversible Gearhead Motor
SKU YG2734
Original price
$41.87
-
Original price
$41.87
Original price
$41.87
$50.95
$50.95
-
$50.95
Current price
$50.95
4K UHD
Mid-range reversible DC motor with gearbox head for simple drivetrain applications. Ideal for driving wheels or other traction devices.
Operating Voltage: 12VDC
At Stall:
Torque:  14kg.cm
Current: 1.7A
Motor
| No load current | 70mA |
| No load RPM | 36RPM |
| Full load current | 1.38A |
| Full load torque | 12kg.cm |
| Max efficiency | 65.9% |
| Max efficiency RPM | 29RPM |
| Maximum efficiency torque | 2.2kg.cm |
| Max. efficiency current | 0.32A |
| Shaft diameter | 5mm |
| Shaft length | 9mm |
| Motor Type | Gearhead |
| Motor Nominal Voltage | 12V |
| Max efficiency power | 3.8W |
Power Source Details
| DC Voltage | 4.5V, 18V |
| Item connection | Solder Tags |
Gearbox
| Type | Planetary/Orbital |
| Gear Ratio | 244:1 |
| Adjustable Gear | |
| Pre-assembled Gear |
Packaged Dimensions
| Packaged Volume | 0.2112l |
| Packaged Weight | 0.088kg |
| Packaged Length | 6cm |
| Packaged Width | 11cm |
| Packaged Height | 3.2cm |
Product Availability
| Availability | Stocked item |
