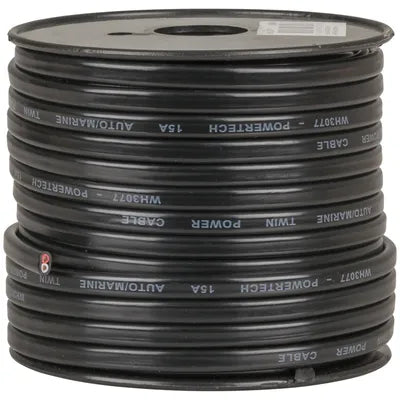

30m Roll 15A Twin Core Power Cable

SKU WH3077
Original price $109.00 - Original price $109.00
Original price
$109.00
$109.00 - $109.00
Current price $109.00

Suitable for automotive and marine applications.

Features:
*Resistance @ 20ºC: 0.0123 ohm/m
*Max temp.: 80ºC
* Current capacity: 15A
*Stranding: 2/26 x 0.2mm
*Insulation: PVC



Sold by the metre: WH-3079


Packaged Dimensions


Packaged Volume
1.68504l
Packaged Weight
1.89kg
Packaged Length
12.4cm
Packaged Width
12.7cm
Packaged Height
10.7cm

Wire and Cable


Wire Category
hook up / power
Outer Diameter
3.2mm
Conductor Overall Diameter
1.53mm
Core Material
Tin Plated Copper
Resistance per Linear Metre
10.8mΩ
Retail Sales Unit
Roll
Roll Length
30m
AWG
16

Product Availability


Availability
Stocked item
