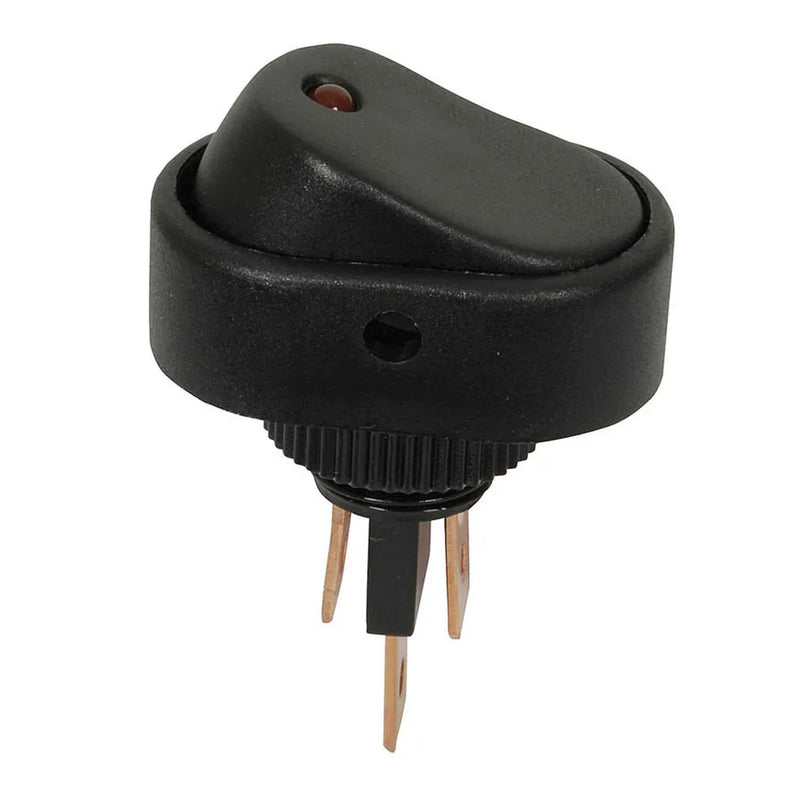

30A 12VDC Red LED Illuminated Rocker Switch
Original price
$7.77
-
Original price
$7.77
Original price
$7.77
$9.95
$9.95
-
$9.95
Current price
$9.95
| /
This is a classy switch. It is a rocker, but only needs a round 12mm hole (with 1mm flat). Its SPST and can handle a massive 30 amps at 12VDC. There is an LED in the actuator. Cutout 10.5mm.
Electromechanical Switch
Mechanism Material
| Plastic |
Switch Colour Coded
| Black |
Pole Throw Type
| SPST |
Switch Type
| Rocker |
Poles / Contacts
| 1 pole |
Throws / Positions
| 1pos |
Switch Connection
| Spade Terminals |
Switch Function
| Locking On/Off |
Actuator Length
| 30mm |
Actuator Width
| 19.5mm |
Actuator Height
| 39mm |
Product Mounting
Round Mount Hole Diameter
| 12mm |
Mounting Method
| Panel |
DC Voltage Rating
DC Current Rating
In-built Illumination
Illumination Colour
| Red |
Nominal Voltage
| 9V-12V |
Connection
| Spade Terminals |
Type
| 3mm Standard LED |
Product Dimensions
Height
| 45mm |
Length
| 29mm |
Width
| 18mm |
Packaged Dimensions
Packaged Volume
| 0.04967l |
Packaged Weight
| 0.08kg |
Packaged Length
| 5.5cm |
Packaged Width
| 4.3cm |
Packaged Height
| 2.1cm |
Product Availability
Availability
| Stocked item |
