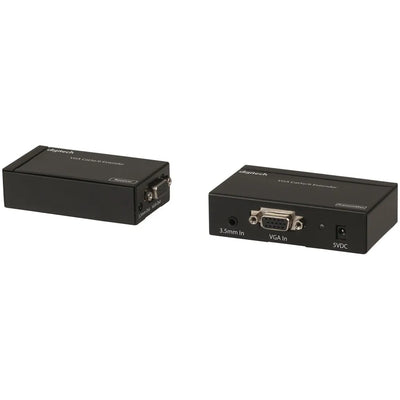

300m VGA Cat5e/6 Extender with Audio
SKU AC1671
Original price
$147.25
-
Original price
$147.25
Original price
$147.25
$176.95
$176.95
-
$176.95
Current price
$176.95
1 Year Warranty
Able to transmit VGA and audio signals across a standard UTP or STP Cat6/Cat5e cable for distances up to 300 metres. Adjust the brightness and skew of the image with the peak and gain options. Use for home or commercial applications, for example, classrooms, lecture halls, auditoriums, retail kiosks, video information displays, tradeshows, etc. Ideal for VGA monitors or LCD projection screens. Supports up to 1920 x 1200 pixels. Includes two mains power adaptors.
Features:
• LPCM 2.0 Audio
• 1920 x 1200 Maximum Video Resolution
Video Resolution
| Supported Display Resolution | 480p (640 x 480), 800 x 600, 1024 x 768, 720p (1280 x 720), 1280 x 768, 1280 x 1024, 1920 x 1080 @ 60fps |
| Resolution Frequency | 60Hz-85Hz |
| Maximum Horizontal Resolution | 1920Pixel |
| Maximum Vertical Resolution | 1200Pixel |
Signal Extender Balun
| Number of Cables | 1pc |
| Number of Outputs | 1pc |
| Signal Type | VGA |
| Input Connection | D15 HD (VGA) |
| Connecting Cable | Cat5 UTP |
| Maximum Distance Between Baluns (cat5e) | 210m, 210m |
| Maximum Distance Between Baluns (cat6) | 300m, 300m |
| Output Connection | D15 HD (VGA) |
Power from Plugpack
| DC Current Draw | 2A, 2A |
| DC Plugpack Voltage | 5V, 5V |
| Item Connection | Barrel Plug |
| Suitable PSU Included |
Product Dimensions
| Dimension details | Transmitter |
| Length | 100mm |
| Width | 65mm |
| Height | 26mm |
Packaged Dimensions
| Packaged Volume | 2.2737l |
| Packaged Weight | 0.671kg |
| Packaged Length | 22cm |
| Packaged Width | 19.5cm |
| Packaged Height | 5.3cm |
Internal or Sub-part Dimensions
| Length | 100mm |
| Dimension details | Transmitter |
| Width | 65mm |
| Height | 26mm |
A/V Switcher or Converter
| Switcher/Converter Type | Balun Extender |
| Input type | VGA |
Warranty: 12 Months
