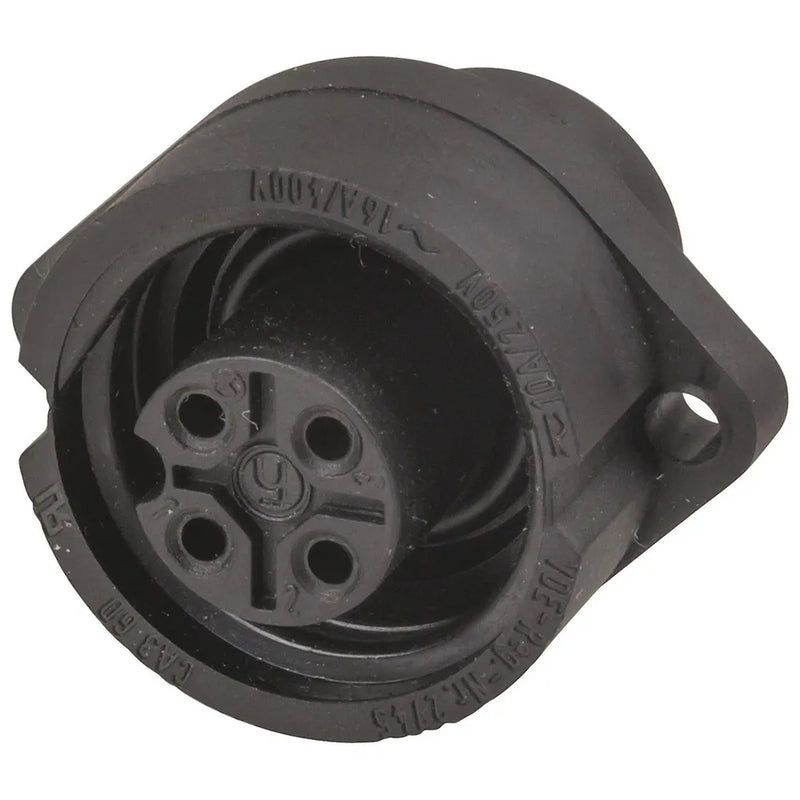

3 Pole and Pre-earth CA Series Panel Socket
SKU PS1009
Original price
$24.67
-
Original price
$24.67
Original price
$24.67
$29.95
$29.95
-
$29.95
Current price
$29.95
Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. - or pre-engaging - earth contact). The mating parts securely screw together to form environmental protection to IP-67. For further technical information see specifications. A quality industry-standard connector.
Features:
Insulation resistance: ‚â• 10^8ohm
Contact Resistance: ≤5mohm
Contact Material: Silver
Contact Screw: Solder
Wire Conductor (max): 2.5mm²
Temperature range: -40°C to + 100°C
Protection: IP67 to IEC60529/DIN40050
Housing: Polyamide 6.6
Strain Relief: Screw clamp/Ring & Gland Nut (9mm)
Features:
Insulation resistance: ‚â• 10^8ohm
Contact Resistance: ≤5mohm
Contact Material: Silver
Contact Screw: Solder
Wire Conductor (max): 2.5mm²
Temperature range: -40°C to + 100°C
Protection: IP67 to IEC60529/DIN40050
Housing: Polyamide 6.6
Strain Relief: Screw clamp/Ring & Gland Nut (9mm)
Plug or Socket
| Pack Quantity | 1pc |
| Device | Socket |
| Plug or Socket Type | C16-1 Series |
| Contacts / Pins | 3pc |
| Attachment Method | Solder Tag |
| Case Material | Plastic |
DC Current Rating
| DC current rating | 10A |
AC Voltage Rating
| AC Voltage rating | 400V |
DC Voltage Rating
| DC Voltage | 250V |
Ingress Protection Rating
| IP Rating certificate |
Packaged Dimensions
| Packaged Volume | 0.036l |
| Packaged Weight | 0.023kg |
| Packaged Length | 3cm |
| Packaged Width | 4cm |
| Packaged Height | 3cm |
AC Current Rating
| AC current rating | 16A |
Product Availability
| Availability | Stocked item |
