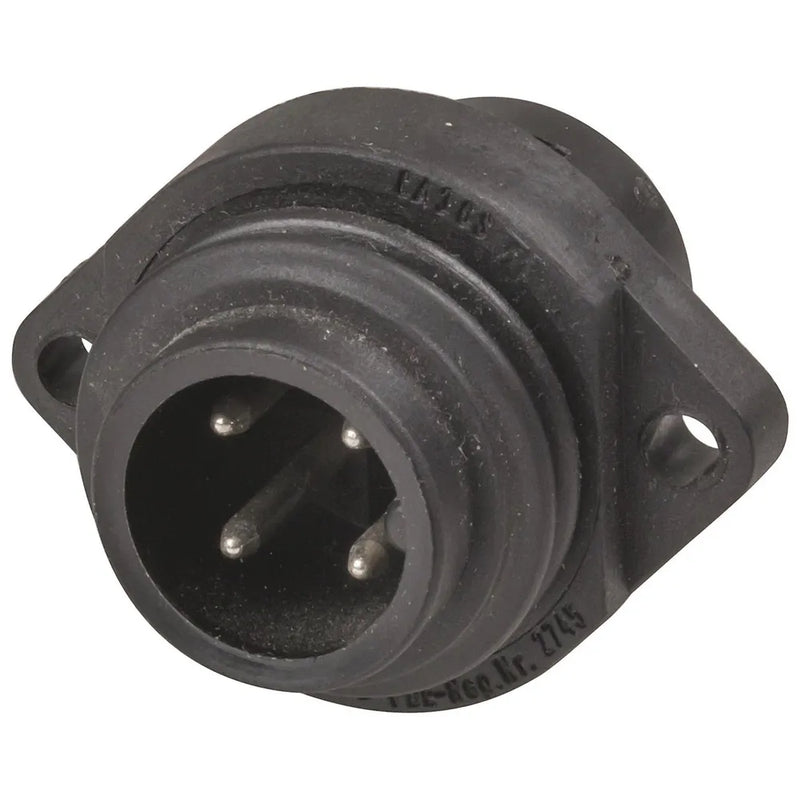

3 Pole and Pre-earth CA Series Panel Plug

SKU PP1008
Original price $19.95 - Original price $19.95
Original price
$19.95
$19.95 - $19.95
Current price $19.95

Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. - or pre-engaging - earth contact). The mating parts securely screw together to form environmental protection to IP-67. For further technical information see specifications. A quality industry-standard connector.

Features
- Electrical: 3 Pole + PE
- Contact Resistance: ≤5mohm
- Suitable for panel mount.
Environmental:
- Temperature range: -40°C to + 100°C
- Housing: Polyamide 6.6
- Strain Relief: Screw clamp/Ring & Gland Nut (9mm)


DC Current Rating


DC current rating
16A

DC Voltage Rating


DC Voltage
450V

AC Voltage Rating


AC Voltage rating
380V

Ingress Protection Rating


IP Rating certificate
IP Rating
IP67

Plug or Socket


Pack Quantity
1pc
Device
Plug
Plug or Socket Type
C16-1 Series
Contacts / Pins
3pc
Attachment Method
Solder Tag
Case Material
Plastic
Contact Material
Plated Metal
Cable Entry Diameter
0.9mm, 0.9mm
Insulation resistance
10GΩ

Packaged Dimensions


Packaged Volume
0.036l
Packaged Weight
0.018kg
Packaged Length
4cm
Packaged Width
3cm
Packaged Height
3cm

Product Availability


Availability
Stocked item
