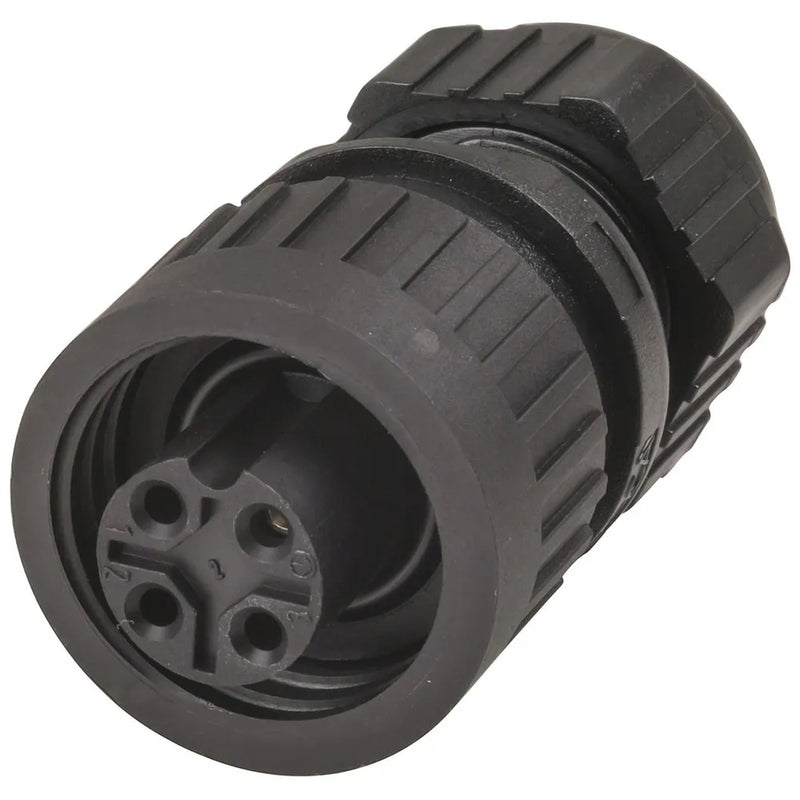

3 Pole and Pre-earth CA Series Line Socket
SKU PS1007
Original price
$34.22
-
Original price
$34.22
Original price
$34.22
$41.95
$41.95
-
$41.95
Current price
$41.95
Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. - or pre-engaging - earth contact). The mating parts securely screw together to form environmental protection to IP-67. For further technical information see specifications. A quality industry-standard connector.
Features:
Insulation resistance: ‚â• 10^8ohm
Contact Resistance: ≤5mohm
Contact Material: Silver
Contact Screw: Solder
Wire Conductor (max): 2.5mm²
Temperature range: -40°C to + 100°C
Protection: IP67 to IEC60529/DIN40050
Housing: Polyamide 6.6
Strain Relief: Screw clamp/Ring & Gland Nut (9mm)
Features:
Insulation resistance: ‚â• 10^8ohm
Contact Resistance: ≤5mohm
Contact Material: Silver
Contact Screw: Solder
Wire Conductor (max): 2.5mm²
Temperature range: -40°C to + 100°C
Protection: IP67 to IEC60529/DIN40050
Housing: Polyamide 6.6
Strain Relief: Screw clamp/Ring & Gland Nut (9mm)
Plug or Socket
| Pack Quantity | 1pc |
| Device | Socket |
| Plug or Socket Type | C16-1 Series |
| Contacts / Pins | 3pc |
| Attachment Method | Solder Tag |
| Case Material | Plastic |
DC Current Rating
| DC current rating | 16A |
AC Voltage Rating
| AC Voltage rating | 380V |
DC Voltage Rating
| DC Voltage | 450V |
Ingress Protection Rating
| IP Rating certificate |
Packaged Dimensions
| Packaged Volume | 0.0735l |
| Packaged Weight | 0.036kg |
| Packaged Length | 7cm |
| Packaged Width | 3.5cm |
| Packaged Height | 3cm |
Product Availability
| Availability | Stocked item |
