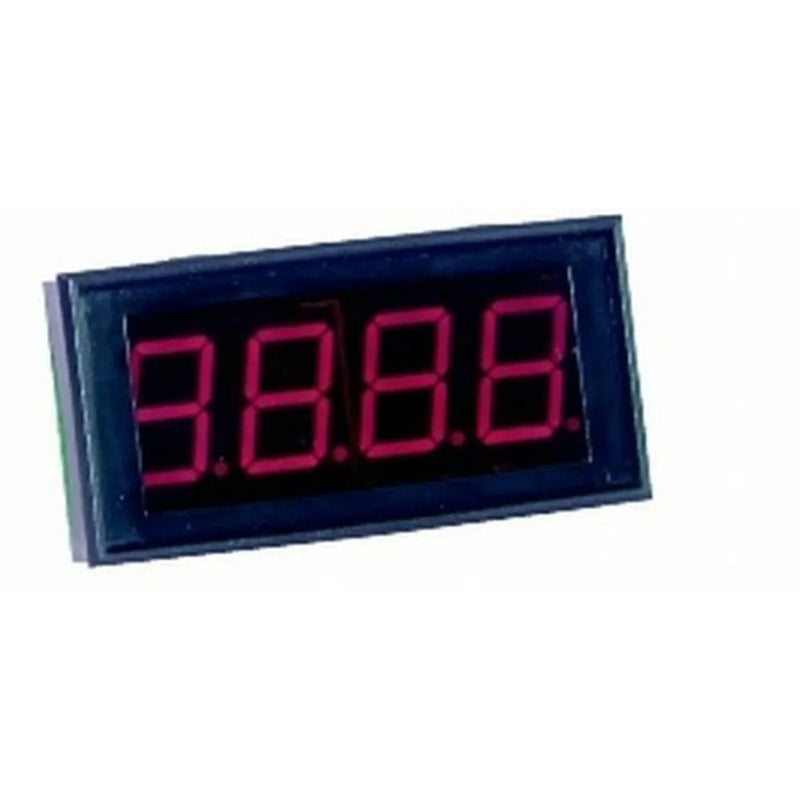

3.5 Digit Jumbo LED Panel Meter

SKU QP5585
Original price $20.97 - Original price $20.97
Original price
$20.97
$20.97 - $20.97
Current price $20.97

This is not just a digital display, but a fully functional high impedance digital panel meter that only requires power to operate. It will measure voltages from 200mV to 500VDC (jumper selectable) and has a maximum count of 1999. The module is suitable for a host of applications and can be used as a voltmeter or adapted for use as a current meter, thermometer etc. The decimal point location can be selected with a jumper and the module uses an easy plug- in fixing method. The meter shares a common ground with the voltage being measured

For More info on Digital Multimeters.

Measures Voltage DC


DC Voltage Accuracy
-0.500000%, 0.50000000%
DC Volts Measurement Range
200mV, 200V

Product Dimensions


Depth
25mm
Height
42mm

Packaged Dimensions


Packaged Volume
0.171l
Packaged Weight
0.06kg
Packaged Length
9.5cm
Packaged Width
6cm
Packaged Height
3cm

Additional Dimensions


Width
Height
42mm

Panel Meters


Power requirements
5V, 5V
Coil Resistance
10MΩ

Product Mounting


Mounting Method
Panel
Attachment / Securing Method
Snap-in

Meter Display


Display Type
LED
Display Backlight
Red LED Backlit
Bargraph
Display Height
20mm
