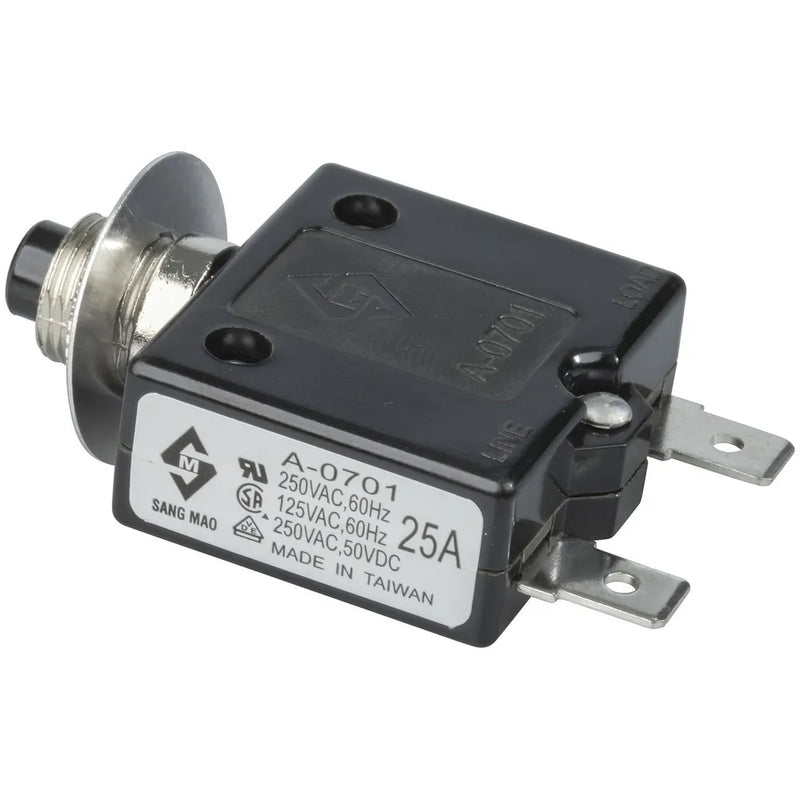

25A Circuit Breaker
SKU SF2261
Original price
$15.07
-
Original price
$15.07
Original price
$15.07
$18.95
$18.95
-
$18.95
Current price
$18.95
Available in current ratings between 3A and 25A. These circuit breakers are rated at 250VAC and are SAA approved.
Specifications:
- Will hold 100% of rated current indefinitely at 25°C
- Will derate at higher temperatures
- Manual push to reset
- Insulation resistance > 100M ohm
- Mounting hole diameter 12mm
Tripping Times
% of Rating | Time to Trip |
100% | Indefinite |
150% | <1 Hour |
200% | 4.0 - 30.0s |
300% | 2.5 - 11.0s |
400% | 1.6 - 7.0s |
500% | 0.8 - 2.5s |
600% | 0.6 - 1.7s |
Typical derating factors
Rating will change by approximate percentage shown in table
TEMP°C | 10-25A | 3-5A |
60 | 50% | |
50 | 60% | |
40 | 72% | 45% |
30 | 85% | 70% |
25 | 100% | 100% |
20 | 110% | 120% |
10 | 125% | 145% |
Product Dimensions
Length | 35.7mm |
Width | 14.6mm |
Height | 47.5mm |
Packaged Dimensions
Packaged Volume | 0.0315l |
Packaged Weight | 0.028kg |
Packaged Length | 6cm |
Packaged Width | 3.5cm |
Packaged Height | 1.5cm |
Circuit Breakers
Circuit Breaker Type | Panel mount |
Circuit Breaker Current | 25A |
Circuit Breaker AC Voltage | 250V |
Circuit Breaker DC Voltage | 50V |
Circuit Breaker Pole Count | 1 pole |
Product Availability
Availability | Stocked item |
