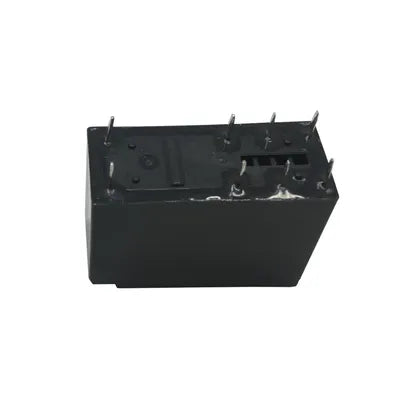

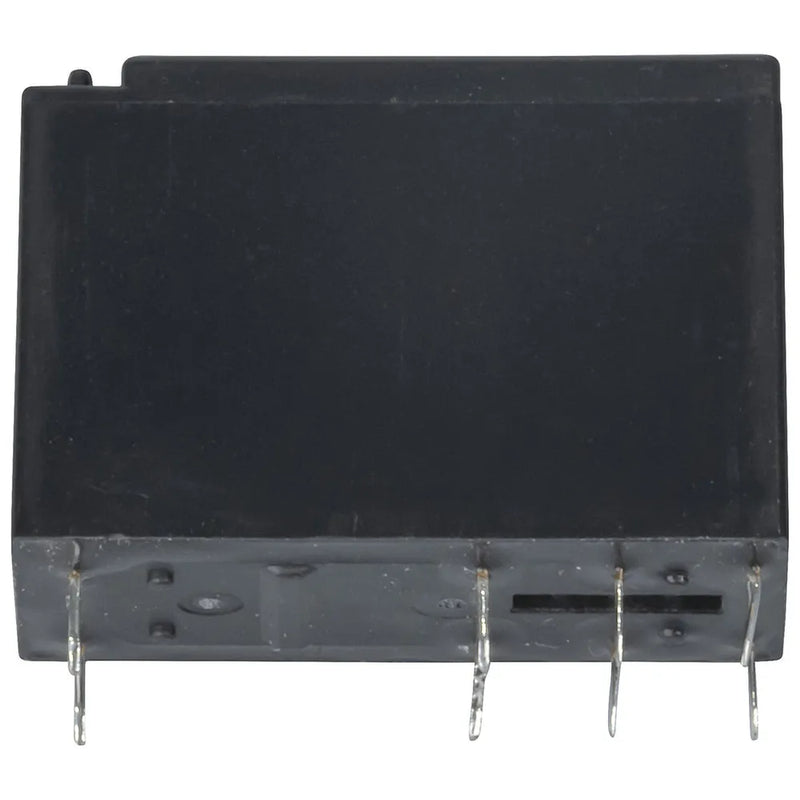

24V DPDT PC Mount Relay - JW Series

SKU SY4053
Original price $9.95 - Original price $9.95
Original price
$9.95
$9.95 - $9.95
Current price $9.95
*24V DC
*Coil 1100 ohm
*2 x 5A @ 30VDC or 2 x 5A @ 250VAC contact rating

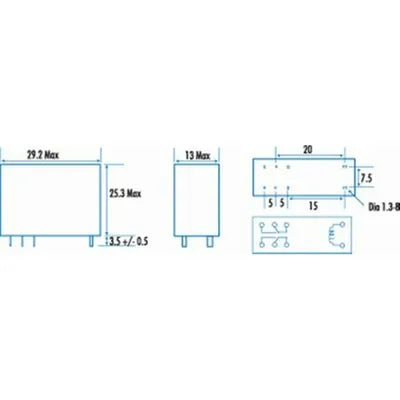

*Size: 29(W) x 12(D) x 29(H)mm

Relay


Input
DC or AC Dual Mode
Contact format
DPDT
DC Switching Current (Opening)
5A
Coil Resistance
1100Ω
AC Contact Voltage
240V, 240V
DC Contact Voltage
24V, 24V
AC Switching Current (Opening)
5A-5A

Power Source Details


DC Current Draw
5A
DC Voltage
24V
AC Voltage
240V
AC Current Draw
5A

Product Mounting


Mounting Method
PCB

Product Dimensions


Width
29mm
Height
25mm
Depth
12mm

Packaged Dimensions


Packaged Volume
0.0084l
Packaged Weight
0.018kg
Packaged Length
2.8cm
Packaged Width
1cm
Packaged Height
3cm

Product Availability


Availability
Stocked item
