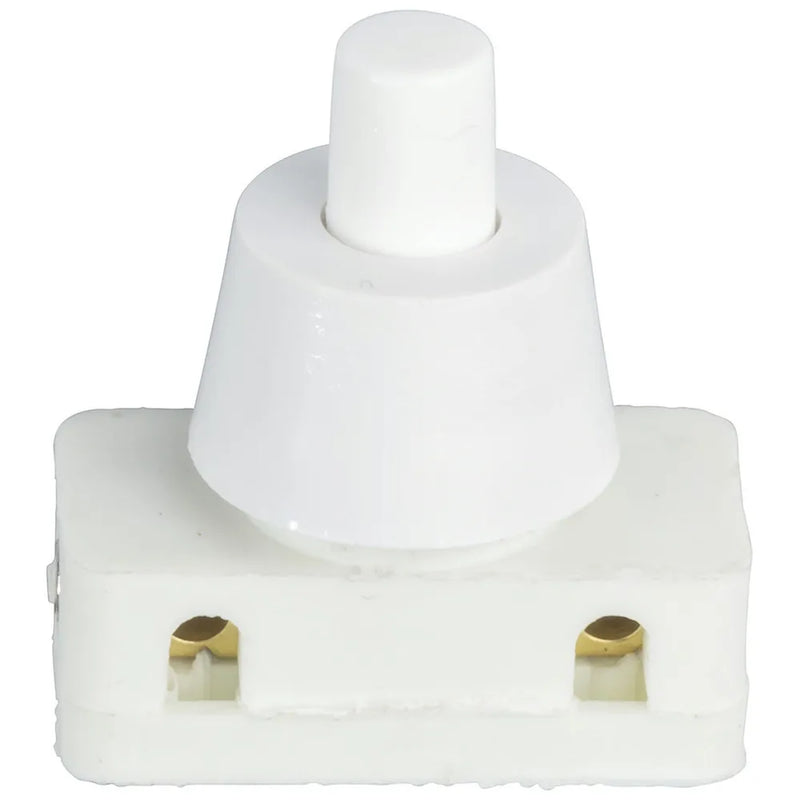

240V 2A Bed Lamp Style Pushbutton Switch SPST

SKU SP0735
Original price $2.90 - Original price $2.90
Original price
$2.90
$2.90 - $2.90
Current price $2.90
1 Year Warranty
240V Mains Power

Universal pushbutton switch suitable for replacing switches in some equipment. Also commonly used in small electronics projects such as school science experiments due to ease of connection.
• Pusbutton stem: 7(L) x 5(Dia.)mm


Product Dimensions


Length
24mm
Height
25mm
Width
12mm

Electromechanical Switch


Mechanism Material
Acrylic
Pole Throw Type
SPST
Switch Type
Pushbutton
Poles / Contacts
1 pole
Throws / Positions
1pos
Centre Off
Switch Connection
Screw Terminal
Switch Function
Locking On/Off
Cycle Life
50000 cycles
Actuator Length
6mm
Actuator Diameter
5mm

Product Mounting


Attachment / Securing Method
Collar / Nut
Round Mount Hole Diameter
10mm
Mounting Method
Panel
Max Mount Panel Thickness
2.5mm

DC Voltage Rating


DC Voltage
32V

DC Current Rating


DC current rating
4A

AC Voltage Rating


AC Voltage rating
240V

AC Current Rating


AC current rating
2A

Product Availability


Availability
Stocked item

Packaged Dimensions


Packaged Volume
0.0075l
Packaged Weight
0.0054kg
Packaged Length
3cm
Packaged Width
2.5cm
Packaged Height
1cm
Warranty: 12 Months
