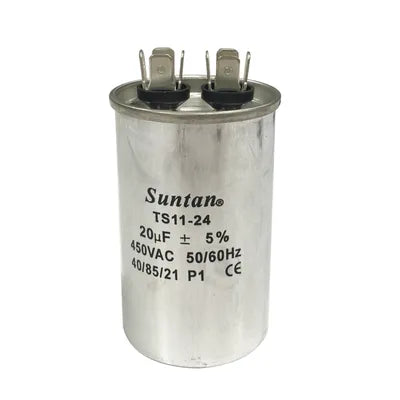

20uF 450VAC Motor Run Capacitor

SKU RU6606
Original price $16.95 - Original price $16.95
Original price
$16.95
$16.95 - $16.95
Current price $16.95

These capacitors are designed to replace the original capacitor that has failed. You must replace the part as the motor may simply not work, draw excessive current or have poor torque.

These are suitable for motors operating at up to 450VAC and common values are offered here. Please note it is important to choose the correct value for the motor otherwise the starting torque of the motor will change.


Handy Tip Capactitor Types

Ceramic:
These offer low cost and high capacitance in a small physical size. Normally there are two types, the ‘High Stability Temperature Compensating’ type and the ‘Bypass and Coupling’ type. The former for use in resonant circuit and filter applications, with a value largely independent of voltage and frequency. The latter is for use in less critical applications, as they are less stable and have non-linear temperature characteristics and are somewhat voltage dependent.Polyester:
These type offer good stability, a large range of values at low cost, and are the most widely used capacitor for general purpose.Polycarbonate:
These have a low temperature coefficient, low dielectric loss at high frequency and excellent temperature stability characteristics.Polystyrene:
These offer tight tolerance and are highly stable; making them suitable for very stable tuned circuits and oscillators.Polypropylene:
This type has a very low dielectric loss and are particularly suitable in audio circuits and sample-and-hold circuits.Mylar:
This is the Du Pont tradename for polyester. They usually have an aluminium film deposit on the dielectric and are called metallised polyester.

Product Dimensions


Diameter
45mm
Height
75mm

Packaged Dimensions


Packaged Volume
0.230496l
Packaged Weight
0.13kg
Packaged Length
9.8cm
Packaged Width
4.8cm
Packaged Height
4.9cm

Capacitor


Capacitor type
Motor start

Capacitance Rating


Item capacitance
20µF
Capacitance tolerance
5%

DC Voltage Rating


DC Voltage
400V

Passive Component


Component Type
Polypropylene Capacitor
Pack Quantity
1pc
Passive mount type
Chassis
Passive connector type
Spade Terminals
Component package
Metal can
Passive number of legs
2 count
Passive marking code
Printed

Product Availability


Availability
Stocked item
