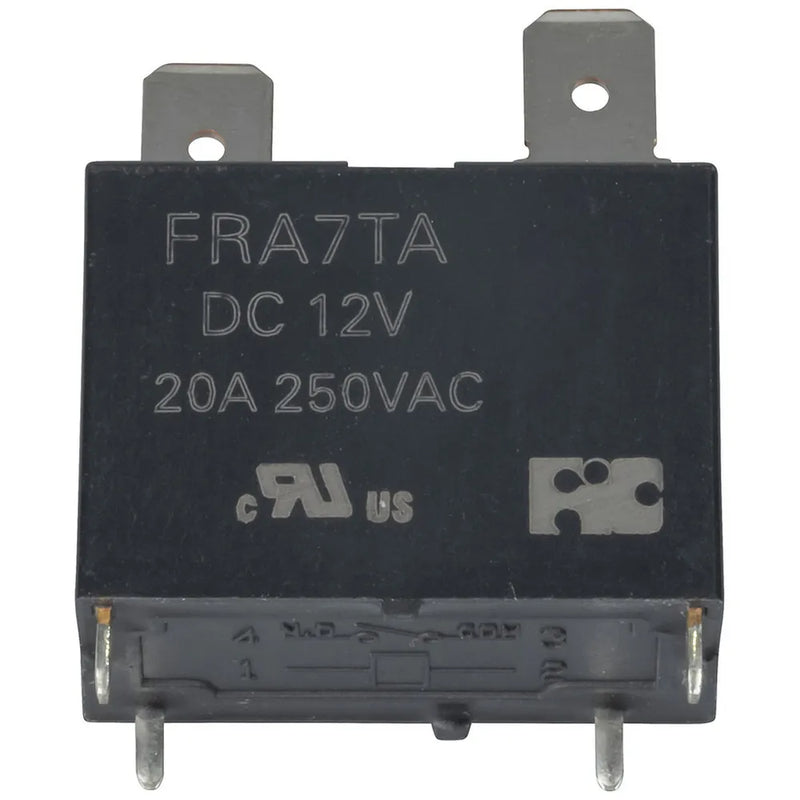

20A 12V SPST PCB Mount Relay

SKU SY4029
Original price $7.95 - Original price $7.95
Original price
$7.95
$7.95 - $7.95
Current price $7.95
PCB mounting 12V relay with QC lug terminals.

Contact current: 20A @ 24VDC, 20A @250VAC max


Relay


Input
DC or AC Dual Mode
Contact format
SPST
DC Switching Current (Opening)
20A
Nominal Voltage
12V
Coil Resistance
275Ω
Coil Current
44mA
AC Contact Voltage
250V, 250V
DC Contact Voltage
12V, 12V

Power Source Details


DC Current Draw
20A
DC Voltage
12V
AC Voltage
250V

Product Mounting


Mounting Method
PCB

Product Dimensions


Length
30mm
Width
22mm
Height
15mm

Packaged Dimensions


Packaged Volume
0.01575l
Packaged Weight
0.021kg
Packaged Length
3cm
Packaged Width
1.5cm
Packaged Height
3.5cm

Product Availability


Availability
Stocked item
