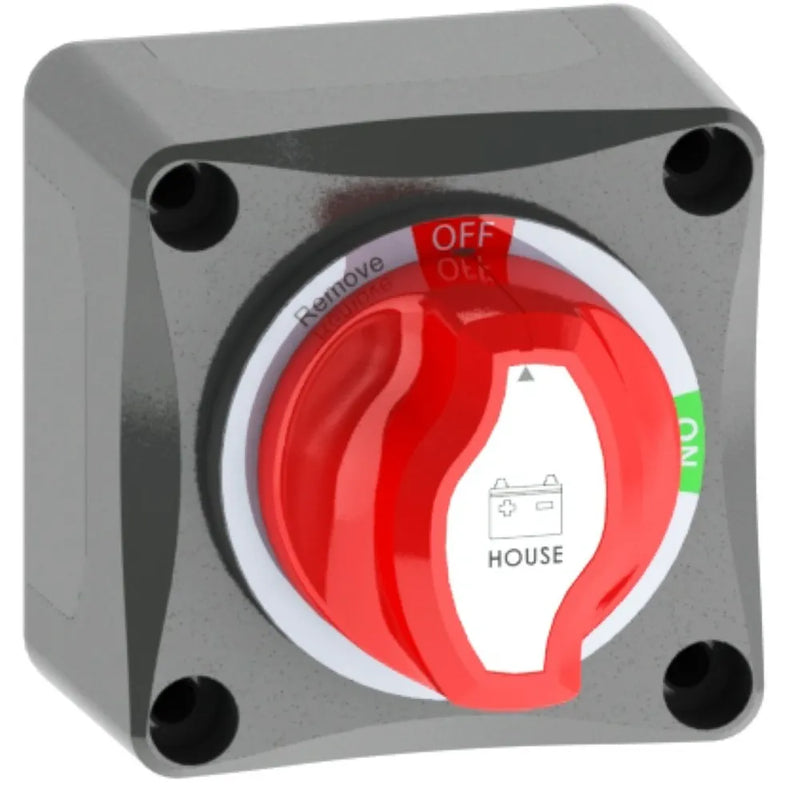

2-Position 275A Battery Isolator Switch with AFD

SKU SF2249
Original price $49.95 - Original price $49.95
Original price
$49.95
$49.95 - $49.95
Current price $49.95
1 Year Warranty

The switches themselves are very durable and rated for massive output. They feature removable windows on all four sides to cater for whatever cabling arrangement you have. Alternator Field Disconnect (AFD) protects your alternator when switching batteries in and out of the circuit. By disconnecting the alternator moments before the battery (moments after when re-engaging), there’s always a load on the alternator to protect the regulation circuitry.

Two models available:
SF-2249 275A Battery - On / Off
SF-2250 200A Dual Battery - 1 / 2 / Both / Off

Features:
• High rated current
• Protects your alternator
• Versatile cable entry
• Continuous Current: 275A
• Surge Current (5min): 455A
• Cranking Current (10sec): 1250A

AC Voltage Rating


AC Voltage rating
48V

Product Availability


Availability
Stocked item

Packaged Dimensions


Packaged Volume
1.52048l
Packaged Weight
0.288kg
Packaged Length
10.4cm
Packaged Width
17cm
Packaged Height
8.6cm
Warranty: 12 Months
