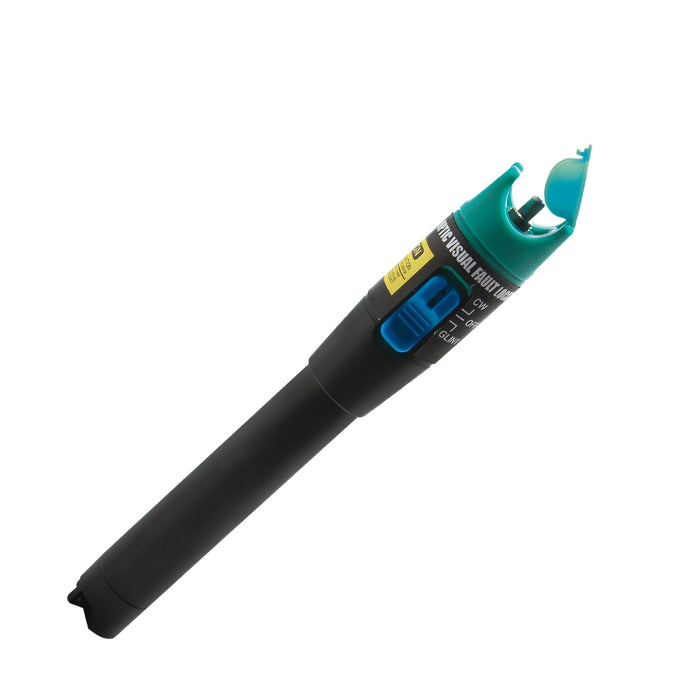

1mW Fiber Optic Visual FaultLocator

•Designed for field personnel who need an efficient and economical tool for continuity checking in an optical network during and after installation
• Easy to locate the breakpoint and bad connections in fiber optic cables

Features



1 SEC.QUICK ILLUMINATE
To make checking work convenient


2 OPERATION MODELS

Locating fault accurately



3 SUPPORTED CONNECTORS

To give more versatile choice(FC/SC/ST)

• Portable, durable and ease to use
• Support 2.5mm universal connectors (for FC/SC/ST)
• Dust-proof & Crash-proof Cap design for laser head
• Both continuous and flashing modes available
• Additional pouch bag receives convenient



Model	MT-7501	MT-7510	MT-7530
Wavelength	650 nm±10 nm
Output Power	1 mW	10 mW	30 mW
Laser	CLASS II	CLASS IIIB	CLASS IIIB
Measuring Distance	3-5km	8-10km	>20km
Battery	AA (1.5 V) x 2
Connector	2.5mm FC/ST/SC Universal
Size	175mm
Operation Temperature	-10~+55 ℃
Storage Temperature	-10~+70 ℃
Optional Accessory	LC Adaptor (5MT-7601-LC)

Downloads

MT_75XX.pdf (Multi Language)

Manual

Download
