1Mohm Spectrol 25 Turn Trimpot

SKU RT4658
Original price $2.95 - Original price $2.95
Original price
$2.95
$2.95 - $2.95
Current price $2.95

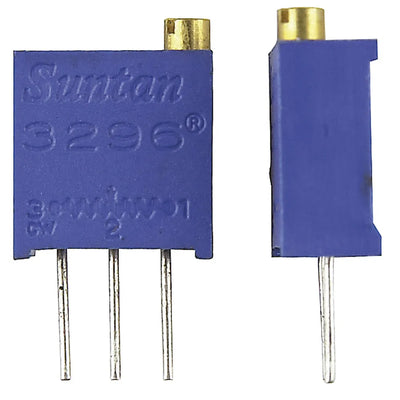

These are 25 turn industrial quality sealed trimpots.
Pins are in a row, with 2.5mm spacing.
Adjustment is vertical.
Power rating is 0.5 watts.
Value 1M

Packaged Dimensions


Packaged Volume
0.001l
Packaged Weight
0.001kg
Packaged Length
1cm
Packaged Width
0.4cm
Packaged Height
2cm

Trimmer Potentiometer


Trim Pot Type
Multi-turn vertical adjustment
Trimpot Scredriver Slot
Flat
Trimpot Turns
25 units

Passive Component


Pack Quantity
1pc
Passive mount type
Through Hole
Passive connector type
Solder Legs
Component package
Square pack
Passive number of legs
3 count
Passive marking code
Number code

Resistance Rating


Resistance level
1MΩ

Power Rating


Continuous Power
0.5W

Product Availability


Availability
Stocked item
