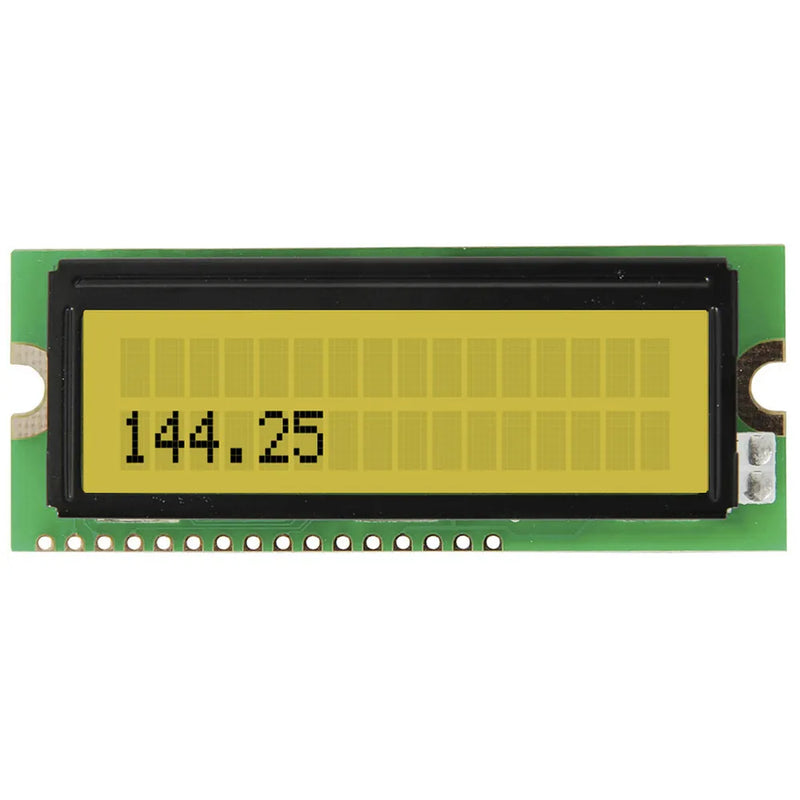

16 x 2 Alphanumeric Backlit LCD with SIL Connection

SKU QP5512
Original price $5.38 - Original price $5.38
Original price
$5.38
$5.38 - $5.38
Current price $5.38
This compact LCD module has 96 inbuilt ASCII characters as well as 92 special letters and 8 custom characters, which can be displayed on a 16 character by 2 line screen. The module will hold the current input on the display using its own built in memory, making it easy to drive. Connections via single in line solder pads with an independent backlight.


Embedded Display


Display Type
LCD
Display lines
2pc
Display total characters
32pc
Display character per line
16pc
Display alphanumerical
ASCII
Display horizontal viewing angle
Sym 0 condition: CR>=2°, Min -30° Max 30°
Display vertical viewing angle
Sym 0 condition: CR>=2°, Min -10° Max 40°
Display character size
4.89 x 2.78mm
Display viewing area
51(W) x 14.8(H)mm
Display colour
Black text
Supply voltage for logic
5VDC
Backlit Display
Other Mechanical Data
Power supply current: 2mA, Duty: 1/16

Measures Voltage DC


DC Voltage Ranges
5V

Measures Current DC


DC Current Ranges
2mA

Product Dimensions


Width
66mm
Height
26mm
Depth
12mm
Weight
22g

Packaged Dimensions


Packaged Volume
0.021l
Packaged Weight
0.02kg
Packaged Length
7cm
Packaged Width
3cm
Packaged Height
1cm

Internal or Sub-part Dimensions


Width
66mm
Height
26mm

Additional Dimensions


Length
Width
66mm
