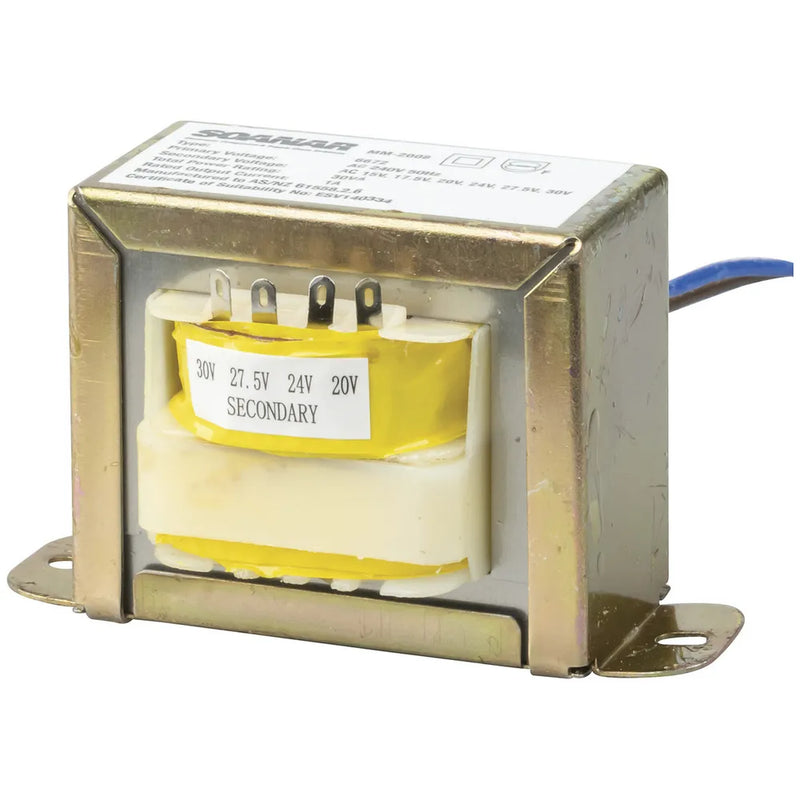

15-30V, 30VA, 1A Multi-Tapped
SKU MM2008
Original price
$35.88
-
Original price
$35.88
Original price
$35.88
$43.95
$43.95
-
$43.95
Current price
$43.95
240V Mains Power
Traditional laminated iron core transformers suitable for new projects, hobby projects or as a  replacement in existing equipment. They have a thermal fuse built into the primary winding for added safety and a wide variety is available to suit your specific needs.
 • Primary Connection: 200mm Fly Leads
 • Primary Connection: 200mm Fly Leads
Transformers
| Type of Transformer | Laminated Core |
| Case Type | 6672 |
| Primary Winding Connection | Flyleads |
| Secondary Winding Connection | Solder Tags |
| Secondary Winding Configuration | Multi-tapped |
| Thermal Fuse | |
| Temperature Rise Above Ambient at Rated Power | 60°C |
| Regulation | 11% |
| Core Material | Laminated Iron |
| Magnetising Current | 40mA |
| Mount Spacing (A) | 85mm |
| Core Winding Depth (D) | 62mm |
| Case Length (L) | 69mm |
| Case Width (W) | 35mm |
| Case Height (H) | 59mm |
Power Conversion and Transformation
| Type of converter or transformer | laminated/toroidal transformer |
Mains powered
| Max Input Power | 30VA |
| Rated for AU Mains | |
| Mains Voltage Range | 240V |
AC Voltage Rating
| AC Voltage rating | 15V, 17.5V, 20V, 30V, 27.5V |
AC Current Rating
| AC current rating | 1A |
Product Dimensions
| Weight | 924g |
Packaged Dimensions
| Packaged Volume | 0.46927l |
| Packaged Weight | 0.896kg |
| Packaged Length | 10.3cm |
| Packaged Width | 6.7cm |
| Packaged Height | 6.8cm |
Product Availability
| Availability | Stocked item |
