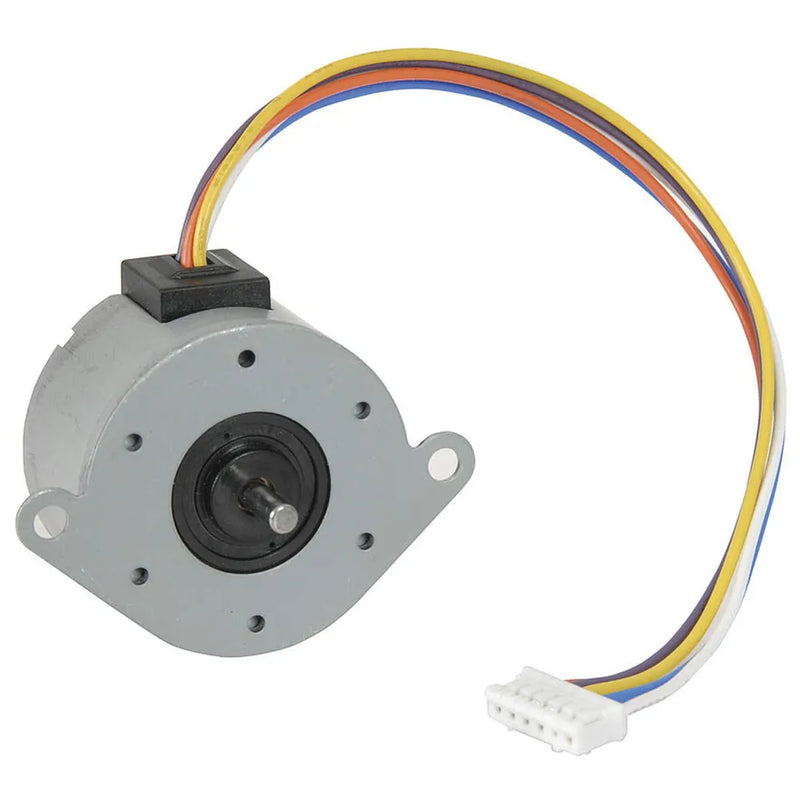

12VDC 48 Step / 7.5° Stepper Motor

SKU YM2754
Original price $25.95 - Original price $25.95
Original price
$25.95
$25.95 - $25.95
Current price $25.95
1 Year Warranty

• Standard 48 step / 7.5° design.
• Flange mount 3.0mm hardened steel shaft.

Specifications:
• Rated voltage: 12VDC
• Rated current: 1.1A/phase
• Phases: 4
• Steps per revolution: 48
• Stepping angle: 7.5°
• Drive method: Unipolar chopper drive
• Resistance per winding: 20 ohms
• Starting frequency: 600pps (max)
• Holding torque: 700g/cm

Handy Tip A note on gearbox speeds

All DC motors and motor gearboxes can change speed to a considerable amount by changing voltage within specified limits. This reduces need for special gear ratios for your application.

Motor


Max. efficiency current
1.1A
Motor Nominal Voltage
12V

Power Source Details


DC Voltage
12V

Packaged Dimensions


Packaged Volume
0.135l
Packaged Weight
0.089kg
Packaged Length
9cm
Packaged Width
7.5cm
Packaged Height
2cm

Product Availability


Availability
Stocked item
Warranty: 12 Months
