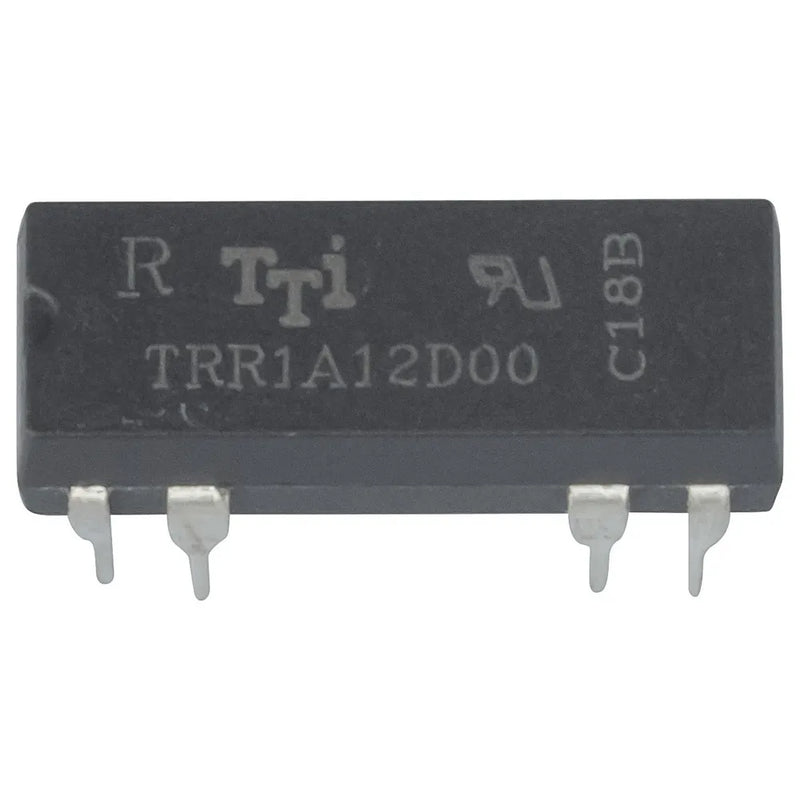

12V SPST DIL Reed Relay
SKU SY4032
Original price
$6.85
-
Original price
$6.85
Original price
$6.85
$8.95
$8.95
-
$8.95
Current price
$8.95
They will fit into a 14 pin IC socket, are highly sensitive and can be driven by TTL, etc. SPST normally open. Nominal Voltage: 12V
Features:
- Must Op: 9.00VDC
- Must Release: 0.8VDC
- Contact Voltage: 25max
Relay
| Device Type | Reed Relay |
| Input | DC |
| Contact format | SPST |
| DC Switching Current (Opening) | 12A |
| Nominal Voltage | 12V |
| Coil Resistance | 1000Ω |
| Coil Current | 12mA |
| DC Contact Voltage | 12V |
| Pickup Voltage | 9V |
| Dropout Voltage | 1V |
Power Source Details
| DC Current Draw | 12A |
| DC Voltage | 12V |
Product Mounting
| Mounting Method | PCB |
Packaged Dimensions
| Packaged Volume | 0.0018l |
| Packaged Weight | 0.002kg |
| Packaged Length | 1.8cm |
| Packaged Width | 1cm |
| Packaged Height | 1cm |
Product Availability
| Availability | Stocked item |
