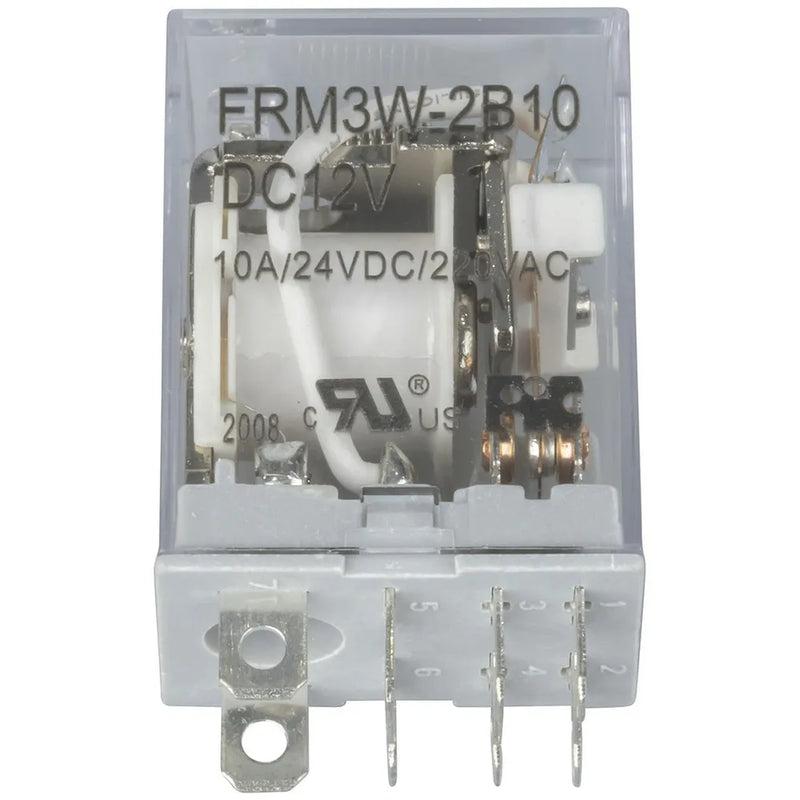

12V DPDT Power Relay - 10A 240VAC/24VDC Contacts
SKU SY4065
Original price
$17.90
-
Original price
$17.90
Original price
$17.90
$21.95
$21.95
-
$21.95
Current price
$21.95
High power DPDT relay suitable for switching loads up to 10A. Designed to suit the SY-4064 DIN rail mounting cradle. Can also be installed with direct connection using 5mm spade lugs.
Relay
| Device Type | Cradle Mounting Relay |
| Input | DC |
| Contact format | DPDT |
| DC Switching Current (Opening) | 10A |
| Nominal Voltage | 12V |
| Coil Resistance | 160Ω |
| Coil Current | 75mA |
| AC Contact Voltage | 240V, 240V |
| DC Contact Voltage | 24V, 24V |
| AC Switching Current (Opening) | 10A-10A |
| Operation Time | 25ms |
Power Source Details
| DC Current Draw | 75mA |
| DC Voltage | 12V |
| Item connection | Spade Terminals |
Product Mounting
| Mounting Method | Cradle/Socket Mount |

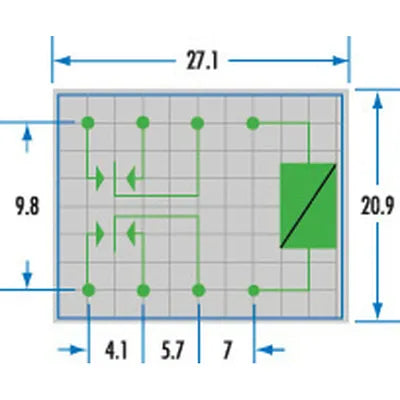

Product Dimensions
| Length | 20mm |
| Height | 35mm |
| Width | 27mm |
Packaged Dimensions
| Packaged Volume | 0.0225l |
| Packaged Weight | 0.035kg |
| Packaged Length | 2.5cm |
| Packaged Width | 2cm |
| Packaged Height | 4.5cm |
Product Availability
| Availability | Stocked item |
