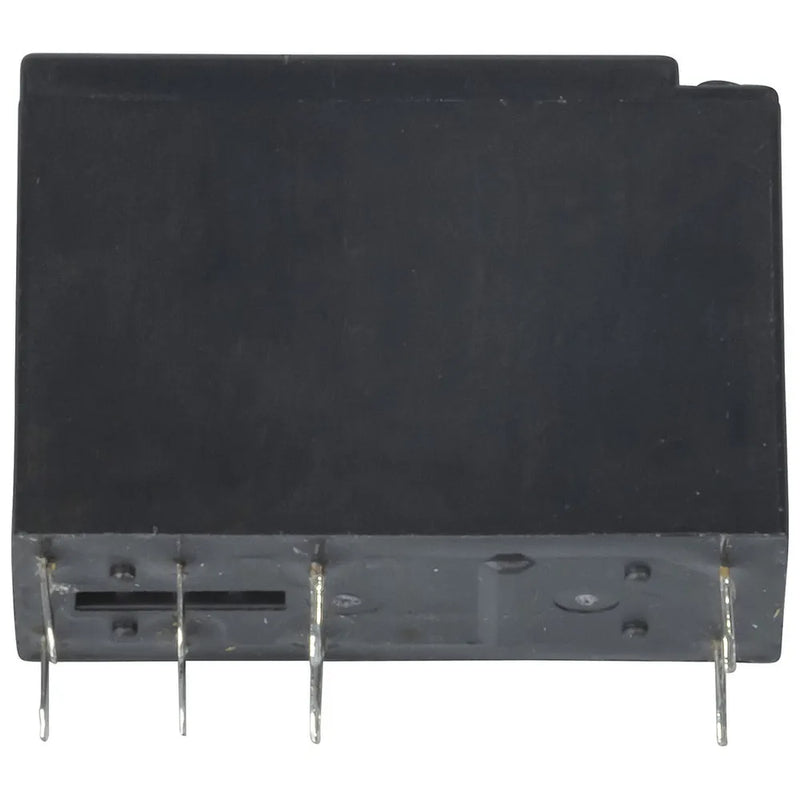

12V DPDT PC Mount Relay - JW Series
SKU SY4052
Original price
$11.88
-
Original price
$11.88
Original price
$11.88
$14.95
$14.95
-
$14.95
Current price
$14.95
DPDT- 12V DC. - Coil 285 ohms.- 2 x 5A @ 30V DC or 2 x 5A @ 240V AC contact rating. - Size: 29 x 12 x 29(H)mm.
Relay
| Input | DC or AC Dual Mode |
| Contact format | DPDT |
| DC Switching Current (Opening) | 5A |
| Coil Resistance | 270Ω |
| AC Contact Voltage | 240V |
| DC Contact Voltage | 12V |
| AC Switching Current (Opening) | 5A |
Power Source Details
| DC Current Draw | 5A |
| DC Voltage | 12V |
| AC Voltage | 240V |
| AC Current Draw | 5A |
Product Mounting
| Mounting Method | PCB |
Product Dimensions
| Height | 25mm |
| Width | 29mm |
| Depth | 12mm |
Packaged Dimensions
| Packaged Volume | 0.0105l |
| Packaged Weight | 0.017kg |
| Packaged Length | 3cm |
| Packaged Width | 1.4cm |
| Packaged Height | 2.5cm |
Product Availability
| Availability | Stocked item |
