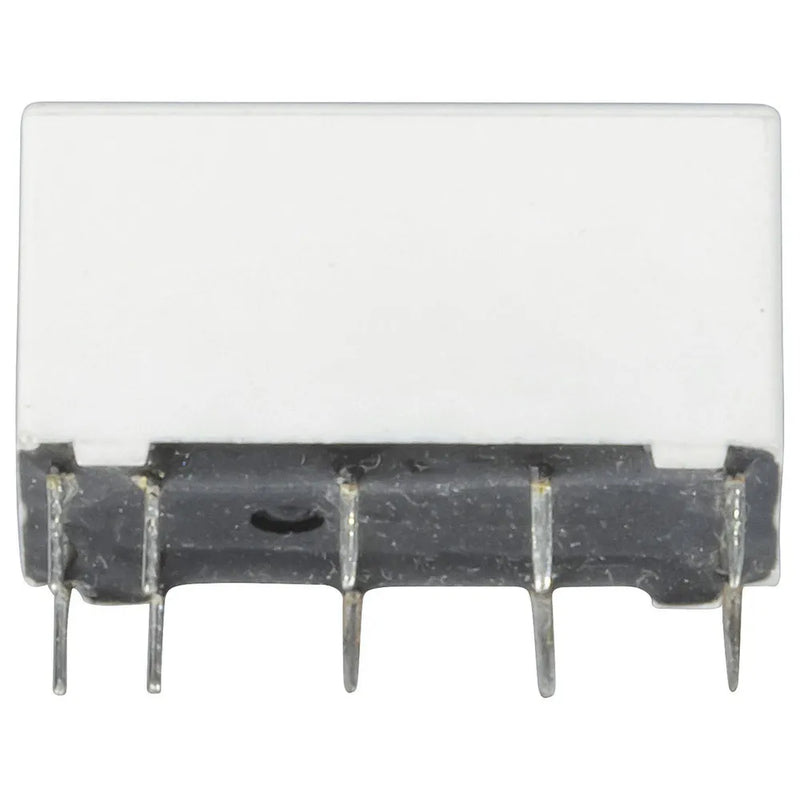

12V DIL Latching Mini Relay
SKU SY4060
Original price
$11.88
-
Original price
$11.88
Original price
$11.88
$14.95
$14.95
-
$14.95
Current price
$14.95
DIP style - will plug into 16 pin IC socket. Low profile mini 12V 2 coil latching relay. Highly sensitive - 180mW nominal power consumption.
Relay
| Input | DC |
| Contact format | DPDT |
| Nominal Voltage | 12V |
| AC Contact Voltage | 250V, 250V |
| DC Contact Voltage | 220V, 220V |
| Latching |
Power Source Details
| DC Current Draw | 2A |
| DC Voltage | 12V |
| AC Voltage | 250V |
| AC Current Draw | 1A |
Power Rating
| Maximum Power | 60W |
Product Dimensions
| Height | 10mm |
| Width | 20mm |
| Depth | 10mm |
Packaged Dimensions
| Packaged Height | 1.3cm |
| Packaged Width | 1cm |
| Packaged Weight | 0.0045kg |
| Packaged Length | 2cm |
| Packaged Volume | 0.0026l |
Product Availability
| Availability | Stocked item |
