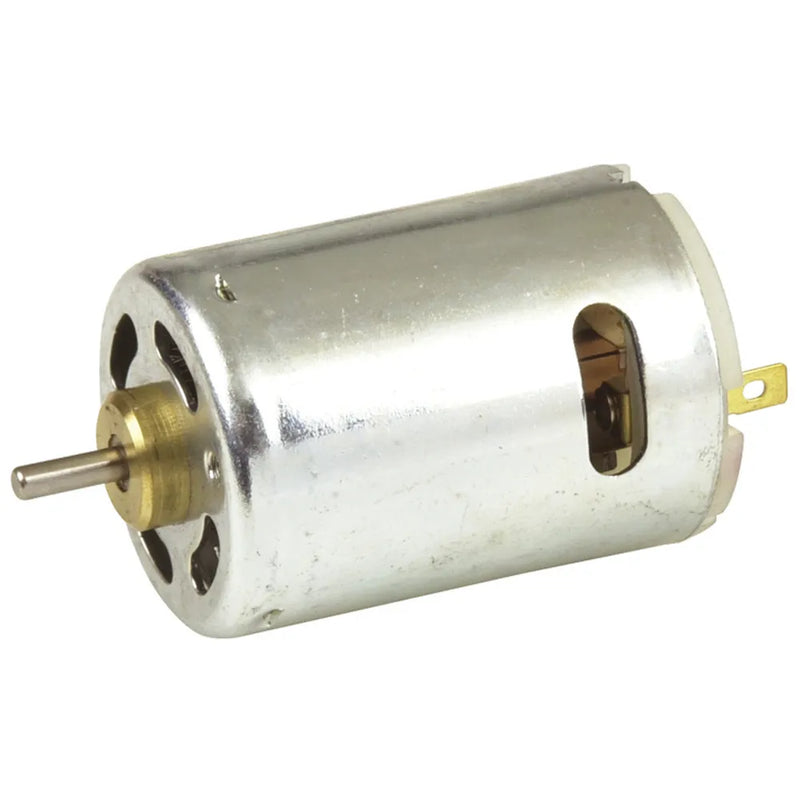

12V 6,500 RPM DC Electric Motor
SKU YM2718
Original price
$34.38
-
Original price
$34.38
Original price
$34.38
$41.95
$41.95
-
$41.95
Current price
$41.95
1 Year Warranty
• Stall Torque : 1864 grams per cm
• Stall Current: 23 Amps

• Max power output: 62. Watts
• Max power current: 11.344 amps
• Max power speed: 6500 RPM
Dimensions:
Mounting thread dia: 3mm
All DC motors and motor gearboxes can change speed to a considerable amount by changing voltage within specified limits. This reduces need for special gear ratios for your application.
Motor
| No load current | 0.67A |
| No load RPM | 13000RPM |
| Max efficiency | 65% |
| Max efficiency RPM | 11200RPM |
| Maximum efficiency torque | 267g.cm |
| Max. efficiency current | 3.9A |
| Shaft diameter | 3.175mm |
| Shaft length | 9.5mm |
| Motor Type | High Power |
| Motor Nominal Voltage | 12V |
| Max efficiency power | 30.7W |
Power Source Details
| DC Voltage | 12V |
Product Dimensions
| Length | 71mm |
| Diameter | 35.8mm |
Packaged Dimensions
| Packaged Volume | 0.128l |
| Packaged Weight | 0.152kg |
| Packaged Length | 8cm |
| Packaged Width | 4cm |
| Packaged Height | 4cm |
Additional Dimensions
| Length | 71mm |
| Diameter | 35.8mm |
Product Availability
| Availability | Stocked item |
Warranty: 12 Months
