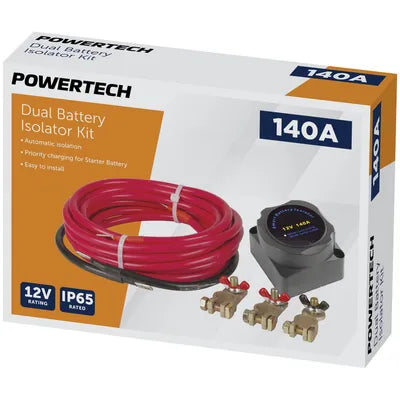

12V 140A Dual Battery Isolator Kit with Wiring Cables

SKU MB3880
Original price $129.00 - Original price $129.00
Original price
$129.00
$129.00 - $129.00
Current price $129.00
1 Year Warranty

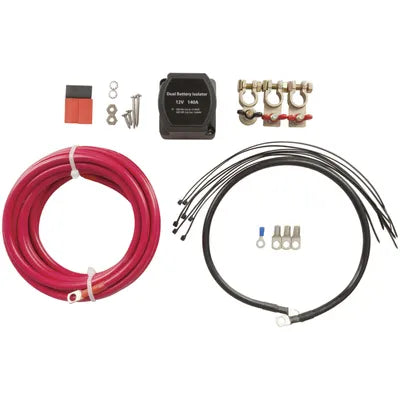

Adding a second battery in your vehicle or boat enables you to power your electrics without flattening your main starter battery when the engine is off. Applications include, for example, 4WD’s with a 12V fridge/freezer, a boat with bright cabin lighting, or say a tradesperson’s van or ute with an inverter powering various power tools. This Voltage Sensitive Relay (VSR) kit provides everything you need to wire up your second battery, while handling the isolation during shut-off periods. It is provided with marine-grade hardware so it can be used on a boat or vehicle. Suitable for 12V systems with a continuous rating of 140A. All wiring hardware and instructions included.

Note: additional black (negative) wire may be required for systems without chassis earth, such as fibreglass boats, depending on your installation.

Features:
- Automatic isolation
- Priority charging for Starter Battery
- Easy to install

Specifications:
Voltage rating: 12VDC
Current rating: 140A
Cut-in voltage: 13.3V
Cut-off voltage: 12.8V
IP Rating: IP65


Ingress Protection Rating


IP Rating
IP65
Dust/Particle Ingress Protection
6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection
5 - Water jets

Additional Dimensions


Cable length

Product Dimensions


Length
670mm
Height
80mm
Width
535mm
Weight
1.6kg

Product Availability


Availability
Stocked item

Packaged Dimensions


Packaged Weight
1.856kg
Packaged Length
31.1cm
Packaged Width
21.9cm
Packaged Height
7.8cm
Packaged Volume
5.312502l
Warranty: 12 Months
