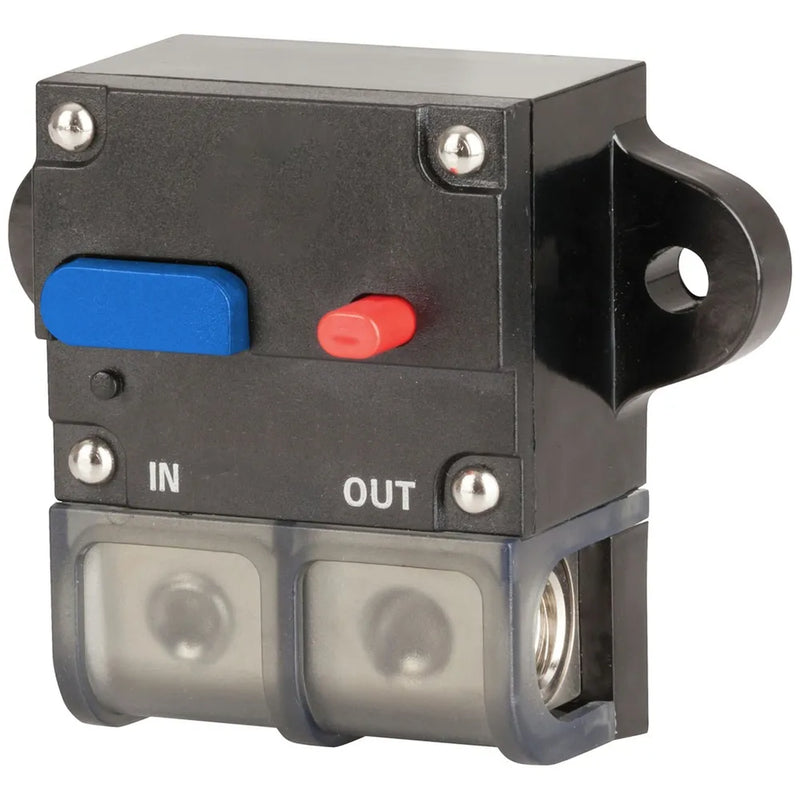

120A 32VDC Panel Mount Circuit Breaker

SKU SZ2083
Original price $59.95 - Original price $59.95
Original price
$59.95
$59.95 - $59.95
Current price $59.95

The reset switch is high grade and will not fail in a short period unlike other units in the market. It has a protective plastic cover to prevent accidental shortage. Incorporates multi-wire gauge inputs and outputs, perfect for high end car audio installations, automotive wiring or solar installations. Terminals are platinum plated. Not IP rated for water or dust protection.

Features:

  • Rated maximum 120A current
  • Rated maximum voltage 32VDC
  • Trip-free operation
  • Built-in brass block suits 0AWG wire
  • Switchable/manual push-to-trip operation
  • Visible trip indication
  • Prominent trip/circuit breaker button

Product Dimensions


Height
68mm
Width
85mm
Depth
35mm

Packaged Dimensions


Packaged Volume
1.092l
Packaged Weight
0.212kg
Packaged Length
14cm
Packaged Width
15cm
Packaged Height
5.2cm

Circuit Breakers


Circuit Breaker Type
High current
Circuit Breaker Current
120A
Circuit Breaker DC Voltage
12V
Circuit Breaker Pole Count
1 pole

Product Availability


Availability
Stocked item
