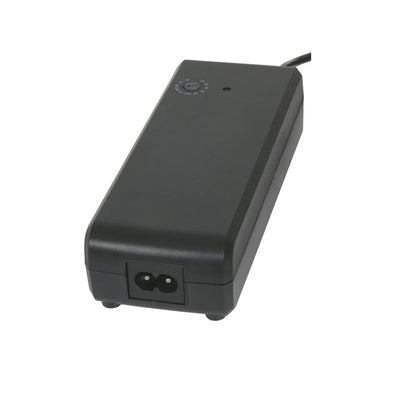

12 - 22V 90W Laptop Power Supply

SKU MP3476
Original price $119.00 - Original price $119.00
Original price
$119.00
$119.00 - $119.00
Current price $119.00
1 Year Warranty
240V Mains Power

This universal laptop power supply has enough grunt to suit all but the most power demanding laptop models. Voltage is manually selectable and unit is supplied with 9 different connectors to suit a wide variety of different laptops. It can even charge newer HP laptops!

Outputs:
12VDC, 6A
14/15/16VDC, 5A
18/18.5/19/19.5/20VDC, 4.5A
21/22VDC, 5A

Connector N:
7.9mm Outer Diameter x 0.9mm Inner Diameter (pin) x 11.5mm Length
Suits: IBM, Lenovo

Connector QV2:
7.4mm Outer Diameter x 0.6mm Inner Diameter (pin) x 12.5mm Length
Suits: HP

Connecter ZV3:
7.4mm Outer Diameter x 0.6mm Inner Diameter (pin) x 12.5mm Length
Suits: Dell

Connecter E:
6.5mm Outer Diameter x 1.4mm Inner Diameter (pin) x 12.0mm Length
Suits: Fujitsu, Panasonic, Sony, Samsung, Dell

Connector G:
5mm Outer Diameter x 1mm Inner Diameter (pin) x 11.5mm Length
Suits: Samsung

Connector P:
5.5mm Inner Diameter x 2.5mm Outer Diameter x 12.0mm Length
Suits: Acer, Asus, Compaq, Gateway, HP, IBM, Fujitsu, Panasonic, Samsung, Sharp, Toshiba, Hitachi

Connector T:
4.75mm Outer Diameter x 1.7mm Inner Diameter x 10.0mm Length
Suits: HP

Connector X:
5.5mm Outer Diameter x 1.7mm Inner Diameter x 12.0mm Length
Suits: Acer

Connector AA:
3.0mm Outer Diameter x 1.0mm Inner Diameter x 8.0mm Length
Suits: Asus, Samsung, Acer

Connector AG:
4.5mm Outer Diameter x 0.60mm Inner Diameter (pin) x 12.0mm Length
Suits: HP

Connector AH:
Rectangular
Suits: Lenovo


Computer Power Supplies


Voltage Selection
Manual switch
Number of plugs or sockets
9pc
Includes USB Charge Port
Suitable For
Laptop
Voltage Display
Plugs to Suit
Dell, Acer, Samsung, Toshiba, Sony

DC Current Rating


DC current rating
6A

DC Voltage Rating


DC Voltage
12V, 22V

Mains powered


Mains Voltage Range
100V, 240V
Rated for US Mains
Auto-select mains voltage
Mains lead included
Rated for AU Mains

Power Rating


Continuous Power
90W

Product Dimensions


Width
58mm
Height
37mm
Length
150mm

Packaged Dimensions


Packaged Volume
1.368l
Packaged Weight
0.676kg
Packaged Length
19cm
Packaged Width
12cm
Packaged Height
6cm

Product Availability


Availability
Stocked item
Warranty: 12 Months
