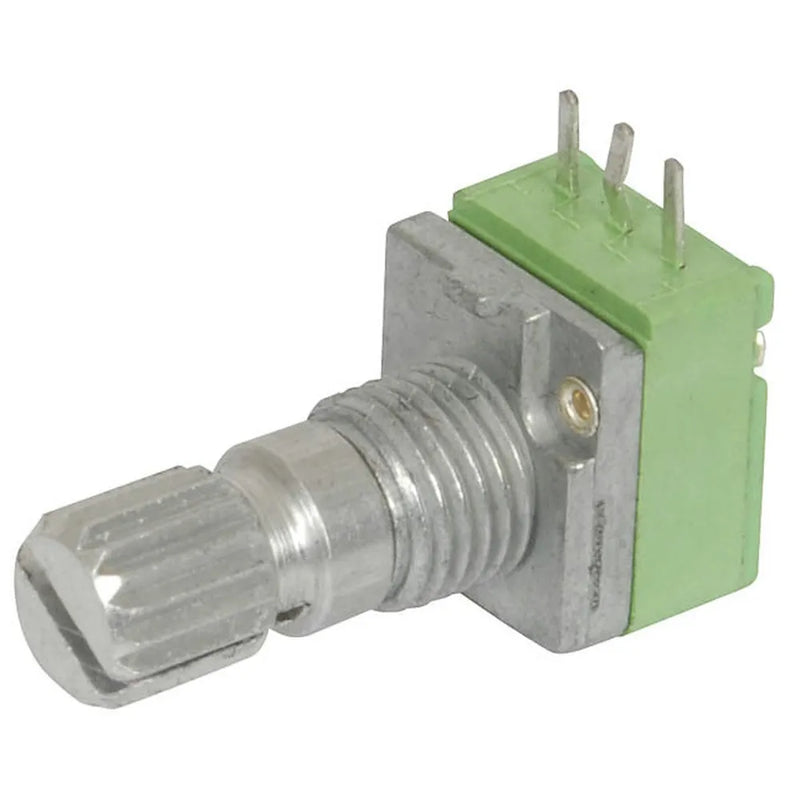

10k Ohm Logarithmic (A) Single Gang 9mm Potentiometer

SKU RP8610
Original price $4.95 - Original price $4.95
Original price
$4.95
$4.95 - $4.95
Current price $4.95

Features:

Rated Power: 0.05W, Other taper: 0.02W

Rated Voltage: 50VAC

Slider Noise: <100mV

Insulation resistance: >100M at 250VDC

Dielectric: 300VAC/Minute

Tracking Error: Within 3dB at 40~0dB

Mechanical Rotation Angle: 300° +/- 5°

Rotation Torque: 20~250gf.cm

Shaft Stop Strength: 5kgf.cm/min.

Value10KΩ


Packaged Dimensions


Packaged Volume
0.00345l
Packaged Weight
0.003kg
Packaged Length
1cm
Packaged Width
1.5cm
Packaged Height
2.3cm

Potentiometer


Log or Linear?
Logarithmic
Potentiometer Knob Type
Metric splined
Potentiometer Terminal Type
Solder Legs
Potentiometer Diameter
9mm
Potentiometer Shaft Length
10mm
potentiometer nut size
9mm metric

Passive Component


Pack Quantity
1pc
Passive mount type
Panel, Through Hole
Passive connector type
Solder Legs
Component package
Square pack
Passive number of legs
3 count
Passive marking code
Number code

Resistance Rating


Resistance level
10kΩ

Power Rating


Continuous Power
0.02W

AC Voltage Rating


AC Voltage rating
50V

Product Availability


Availability
Stocked item
