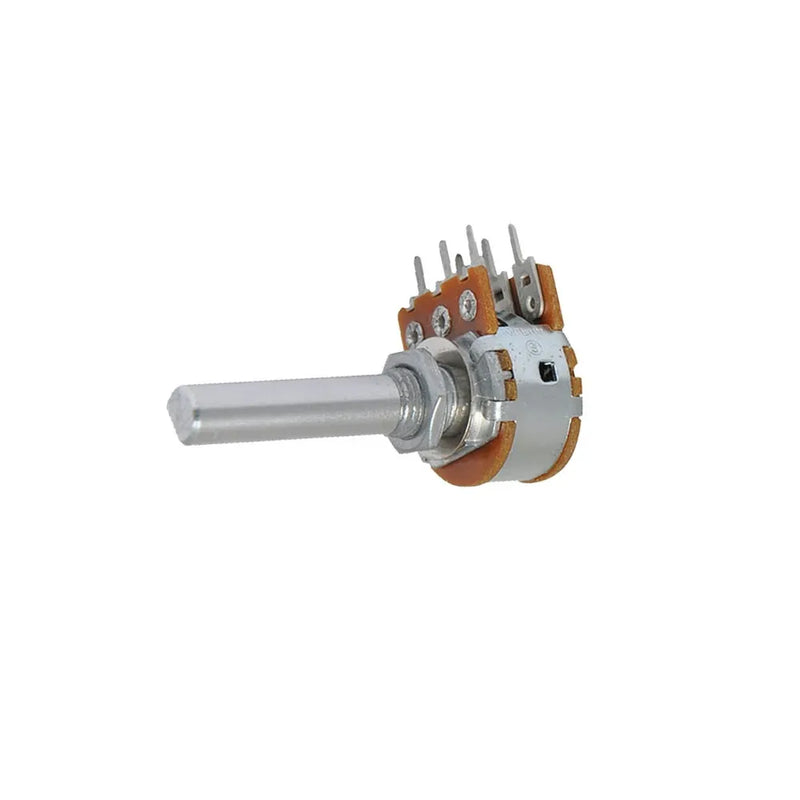

10k Ohm Logarithmic (A) Double Gang 16mm Potentiometer

SKU RP7756
Original price $5.95 - Original price $5.95
Original price
$5.95
$5.95 - $5.95
Current price $5.95
These pots have imperial standard shaft.- Shaft is 1/4 D type (30% of shaft has been removed for flat), so they suit all our knob range.- Shaft length is 30mm, so there is plenty there if you need more length.- Power rating Linear 0.2W and Log 0.1W.Value10K

Packaged Dimensions


Packaged Volume
0.015l
Packaged Weight
0.007kg
Packaged Length
1.5cm
Packaged Width
2.5cm
Packaged Height
4cm

Potentiometer


Log or Linear?
Logarithmic
Potentiometer Knob Type
Imperial D
Potentiometer Terminal Type
Solder Legs
Potentiometer Diameter
16mm
Potentiometer Shaft Length
23.5mm
potentiometer nut size
16mm metric

Passive Component


Pack Quantity
1pc
Passive mount type
Panel, Through Hole
Passive connector type
Solder Legs
Component package
Metal can
Passive number of legs
3 count
Passive marking code
Number code

Resistance Rating


Resistance level
10kΩ

Power Rating


Continuous Power
0.06W

AC Voltage Rating


AC Voltage rating
150V

Product Availability


Availability
Stocked item
