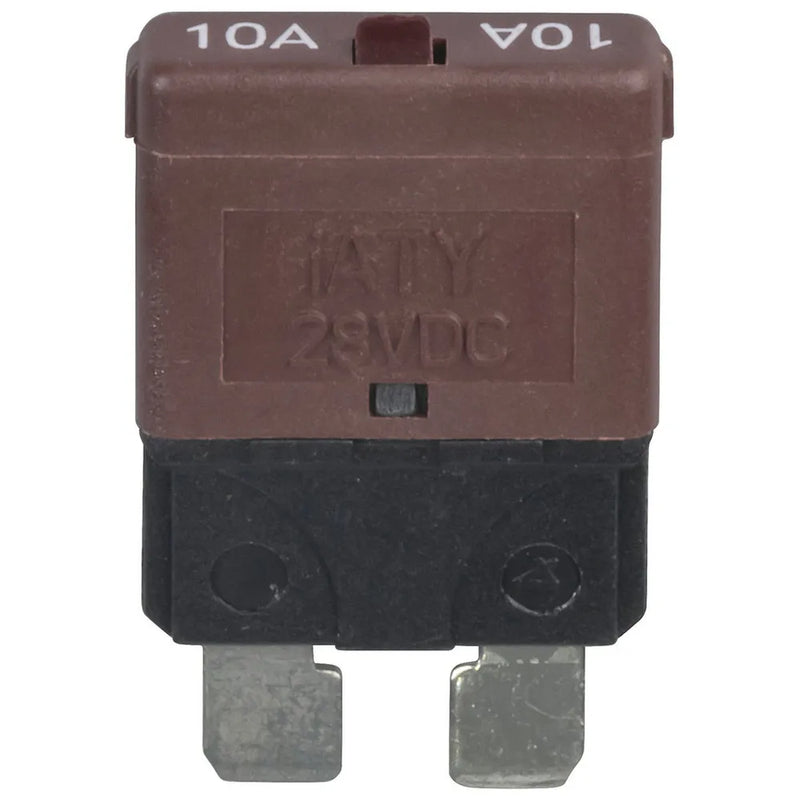

10A Manual Reset Standard Blade Circuit Breaker

SKU SF2333
Original price $7.95 - Original price $7.95
Original price
$7.95
$7.95 - $7.95
Current price $7.95

When tripped, the button extends and to reset simply push button back in (once fault has been cleared). Commonly mounted in a fuse block, fuse holder or panel.

Specifications:

  • Voltage: Circuits up to 28VDC
  • Body dimensions: 24(L) x 20(W) x 6(D)mm (excludes 1mm reset button)
  • Total length including blades: 32mm

Product Dimensions


Width
20mm
Length
24mm
Depth
6mm

Packaged Dimensions


Packaged Volume
0.06496l
Packaged Weight
0.004kg
Packaged Length
11.6cm
Packaged Width
7cm
Packaged Height
0.8cm

Circuit Breakers


Circuit Breaker Type
Blade fuse replacement type
Circuit Breaker Current
10A
Circuit Breaker DC Voltage
28V
Circuit Breaker Pole Count
1 units

Product Availability


Availability
Stocked item
