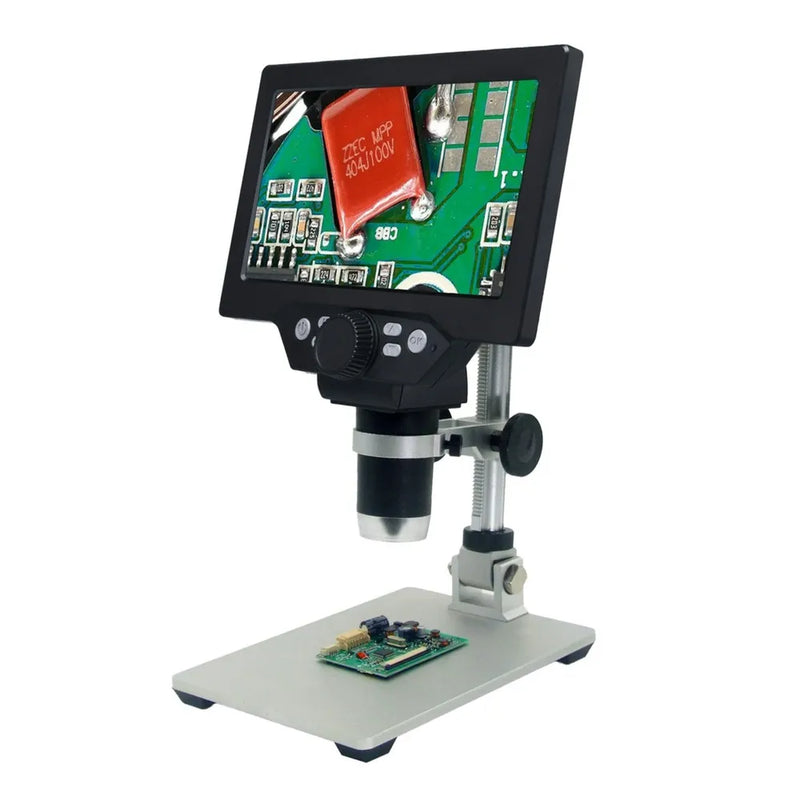

1080P Digital Microscope with 7 Inch HD Screen

SKU QC3185
Original price $433.07 - Original price $433.07
Original price $433.07
$519.95
$519.95 - $519.95
Current price $519.95

This digital microscope with up to 1200X zoom enables you to inspect your electronics to identify poor solder joints, read labels printed on small components, etc. or get a close-up view of your biological-related object. Watch in real-time on the 7” HD colour screen or save video or photos to a microSD card (not included) to playback or review on a computer or larger screen. Eight high-brightness LEDs help provide a clearer view, and its adjustable bracket lets you adjust the angle up to 45° to avoid reflections or to provide space for using tweezers, soldering iron, and other technician’s tools under the microscope. Other features include a screensaver, automatic shutdown, and date & time stamps on photos and videos. Power the microscope by connecting it to an available USB power source. Connect the USB cable to a PC and use it as a PC camera, access the optional memory card or charge the battery.

Features:

1200x Zoom with Continuous Amplification
12MP Camera
7” colour HD LCD
1024x600 pixel screen resolution
10mm to infinity distance between object
Save photos and videos to microSD card
Adjustable angle up to 45°
Specifications:

Magnification: 1200X (Continuous amplification)
Focus Range: 10-130mm
Camera: 12MP
Resolution: 1080FHD
Screen Size: 7” (178mm)
Screen Dimensions: 185(W) x 122(H)mm
Microscope Dimensions: 240-360(H) x 165(D) x 120(W)mm
Powered by rechargeable battery - 1m MicroUSB Cable included


Button Cell information


Contains Button Cell

Microscope


Video capture resolutions
1080FHD
Magnification
1200X
Still image resolution
12MP
Focus range
10mm-130mm

USB Connectivity


USB Port Types
USB Micro Type B
USB Interface Functions
USB Charging, Programming and Serial Data

Product Availability


Availability
Stocked item

Packaged Dimensions


Packaged Volume
4.60152l
Packaged Weight
1.034kg
Packaged Length
24.9cm
Packaged Width
21cm
Packaged Height
8.8cm

Classified as dangerous goods


Dangerous in Road Freight
DG UN Number
3481
DG Ship Name
3481 - Lithium Ion Batteries Packed In Equipment
DG Class
9
DG Pack Group
II - Medium Danger
DG Hazardous Chemical Code
4W
Battery Watt Hour Rating (Required for Lithium Batteries)
11.1Wh
Dangerous in Air Freight
