100k Ohm Linear (B) Single Gang 24mm Potentiometer

SKU RP3518
Original price $4.41 - Original price $4.41
Original price $4.41
$5.95
$5.95 - $5.95
Current price $5.95

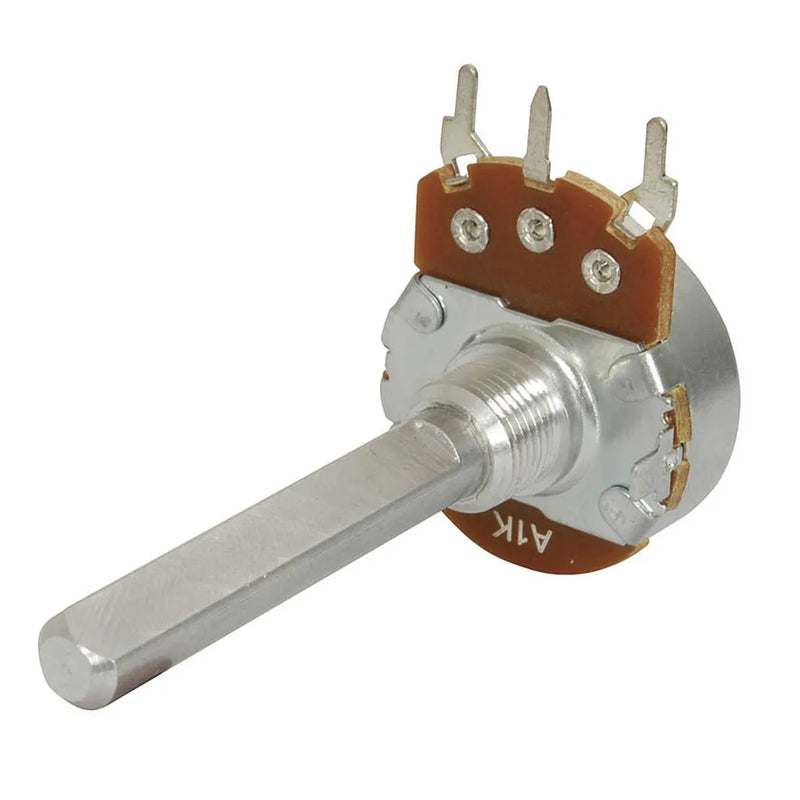

With imperial standard shaft & bushings made to our rigid engineering specifications. The potentiometers are full size - 24mm diameter types . Power rating is 0.5W max. They have genuine 6.35mm (1/4) shafts with a flat machined 25% of the diameter for grubscrews or interference fit knob mounting. The shaft is a generous 38mm long. The bush is a 3/8 32 T.H.D. type which we believe is necessary for good fixing to a panel. Another important feature of the pots is their PCB mount capability. The pins are rigidly mounted on phenolic with the centre pin offset from the two outer terminals. When soldered into a PCB, the pot is quite rigidly held on its own. Double gangpots are held in 6 places and require no extra mechanical mounting assistance. The pins are large enough to terminate screened cable, etc., if the job requires hard wiring. An engineering drawing appears below. You may safely use it to design PCB artwork etc., as we have standardised this design.Value 100K

Packaged Dimensions


Packaged Volume
0.03993l
Packaged Weight
0.01kg
Packaged Length
3.3cm
Packaged Width
2.2cm
Packaged Height
5.5cm

Potentiometer


Log or Linear?
Linear
Potentiometer Knob Type
Imperial D
Potentiometer Terminal Type
Solder Legs
Potentiometer Diameter
24mm
Potentiometer Shaft Length
38.5mm
potentiometer nut size
24mm(3/8inch 32THD)

Passive Component


Pack Quantity
1pc
Passive mount type
Panel, Through Hole
Passive connector type
Solder Legs
Component package
Metal can
Passive number of legs
3 count
Passive marking code
Number code

Resistance Rating


Resistance level
100kΩ

Power Rating


Continuous Power
0.5W

AC Voltage Rating


AC Voltage rating
150V
