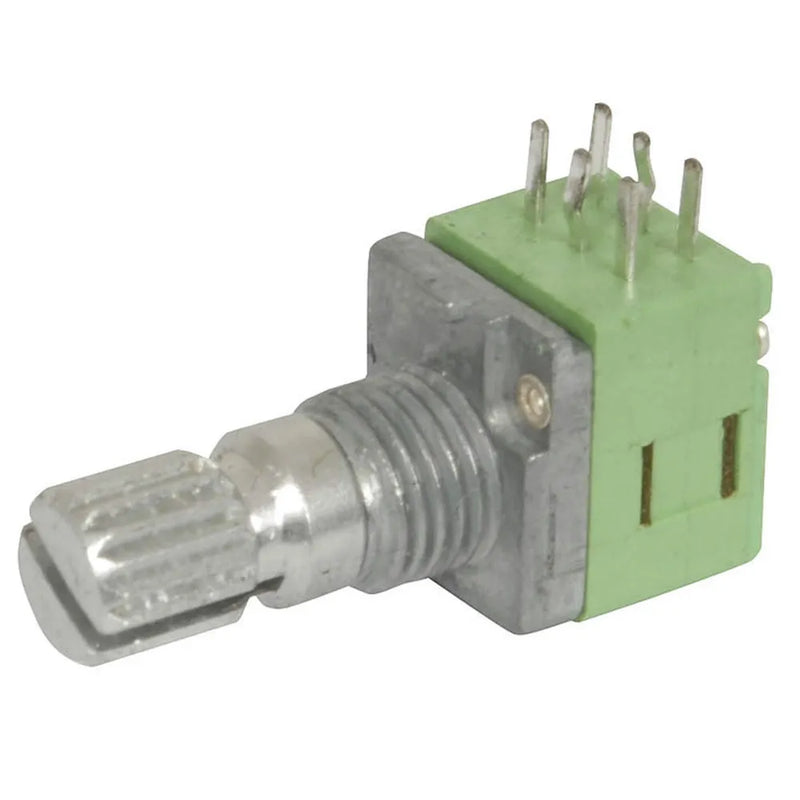

100k Ohm Linear (B) Double Gang 9mm Potentiometer

SKU RP8712
Original price $6.95 - Original price $6.95
Original price
$6.95
$6.95 - $6.95
Current price $6.95

Features:

Rated Power: 0.05W

Rated Voltage: 50VAC

Slider Noise: <100mV

Insulation resistance: >100M at 250VDC

Dielectric: 300VAC/Minute

Tracking Error: Within 3dB at 40~0dB

Mechanical Rotation Angle: 300° +/- 5°

Rotation Torque: 20~250gf.cm

Shaft Stop Strength: 5kgf.cm/min.

Value100KΩ


Packaged Dimensions


Packaged Volume
0.00375l
Packaged Weight
0.004kg
Packaged Length
1.5cm
Packaged Width
1cm
Packaged Height
2.5cm

Potentiometer


Log or Linear?
Linear
Potentiometer Knob Type
Metric splined
Potentiometer Terminal Type
Solder Legs
Potentiometer Diameter
9mm
Potentiometer Shaft Length
10mm
potentiometer nut size
9mm metric

Passive Component


Pack Quantity
1pc
Passive mount type
Panel, Through Hole
Passive connector type
Solder Legs
Component package
Square pack
Passive number of legs
3 count
Passive marking code
Number code

Resistance Rating


Resistance level
100kΩ

Power Rating


Continuous Power
0.05W

AC Voltage Rating


AC Voltage rating
50V

Product Availability


Availability
Stocked item
