100A Panel Mount Battery Isolator Switch with Removable Key
SKU SF2251
Original price
$43.10
-
Original price
$43.10
Original price
$43.10
$51.95
$51.95
-
$51.95
Current price
$51.95

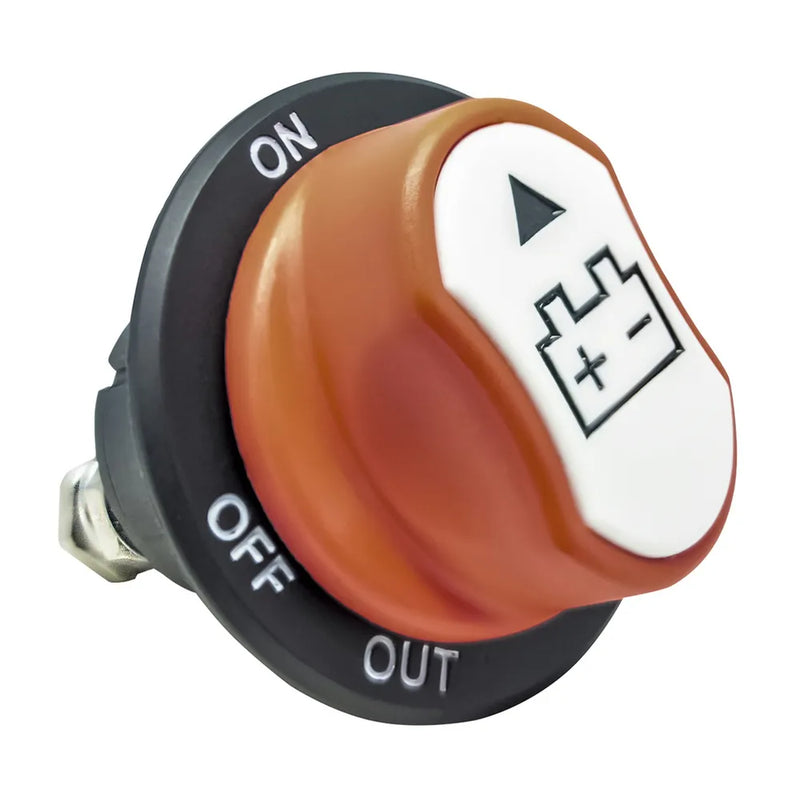

A very compact battery isolating panel mount switch with high 100A current rating and removable key.
• 100A continuous rating
• Vapour proof and ignition protected
• Can be panel or flush mounted, requires 30mm hole.
• Made from non-corrosive materials
Product Mounting
| Mounting Method | Panel |
| Round Mount Hole Diameter | 30mm |
| Attachment / Securing Method | Collar / Nut |
DC Voltage Rating
| DC Voltage | 32V |
Product Dimensions
| Height | 55mm |
| Dimension details | Mounting hole |
| Diameter | 45mm |
| Weight | 43g |
Product Availability
| Availability | Stocked item |
AC Voltage Rating
| AC Voltage rating | 0V, 32V |
Packaged Dimensions
| Packaged Volume | 0.183848l |
| Packaged Weight | 0.054kg |
| Packaged Length | 5.6cm |
| Packaged Width | 4.9cm |
| Packaged Height | 6.7cm |
