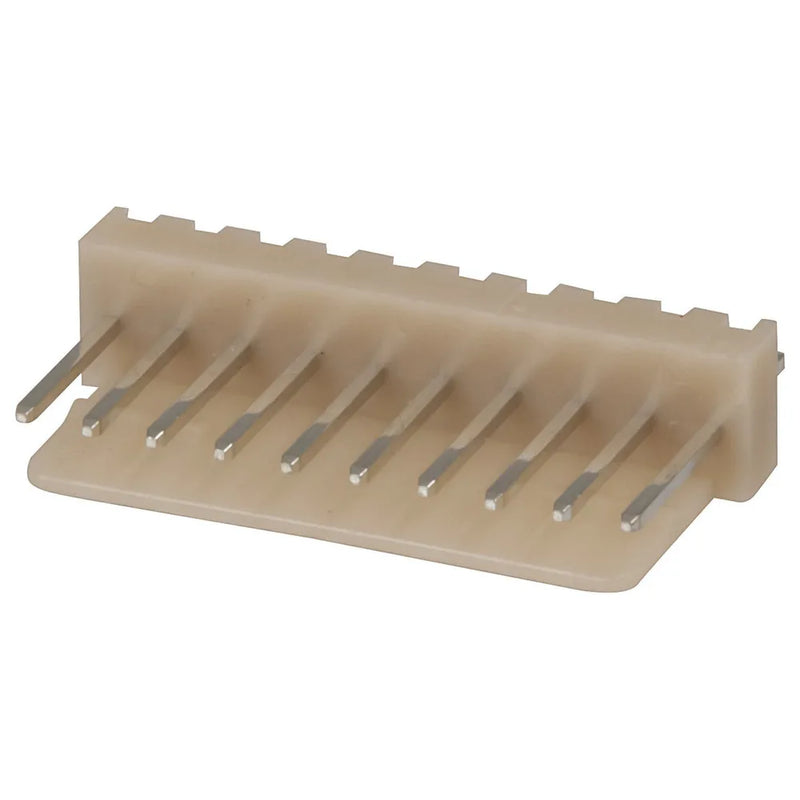

10 Pin 0.1in Straight Locking Header - 2.54mm Pitch - Single

SKU HM3420
Original price $1.05 - Original price $1.05
Original price $1.05
$1.95
$1.95 - $1.95
Current price $1.95
A range of connectors for PCB mounting that allow circuit boards to be plugged together at right angles or end-to-end, or cables to be plugged onto circuit boards at right angles or end-on at the edge of the PCB. Both plugs and sockets may be butted up end-to-end to form connectors with any number of ways from 2 upwards.

Both plugs are wafer design into which square, tin-plated brass pins have been inserted. These pins protrude 3.4mm on one side, and should be soldered to the PCB. The nylon wafer sits on the PCB and is 3.3mm thick. The back provides locking and polarising.

Features:
Normal force: 200g min
Housing: UL 94v-0 white nylon
Temperature: 0 to +75°C

Operating Temperature and Humidity


Operating Temperature
75°C

Header Connections


Pack Quantity
1pc
Number of Pins
10pc
Pin Size
0.9mm
Type
Single Row Header
Device
Socket
Attachment Method
Crimp
Pin Spacing
2.54mm (0.1")
Insulation Dielectric Voltage Rating
1500V
Right Angle Mount
Insulation Resistance
50MΩ
header locking
header polarised
Mating Force
199gg
Contact Insertion Force
681g
Contact Retention to Housing
3.63kg

DC Voltage Rating


DC Voltage
250V

DC Current Rating


DC current rating
2.5A

Product Mounting


Mounting Method
PCB

Product Dimensions


Width
14.2mm
Height
6.3mm
Length
7.6mm

Packaged Dimensions


Packaged Volume
0.001875l
Packaged Weight
0.001kg
Packaged Length
2.5cm
Packaged Width
1.5cm
Packaged Height
0.5cm
