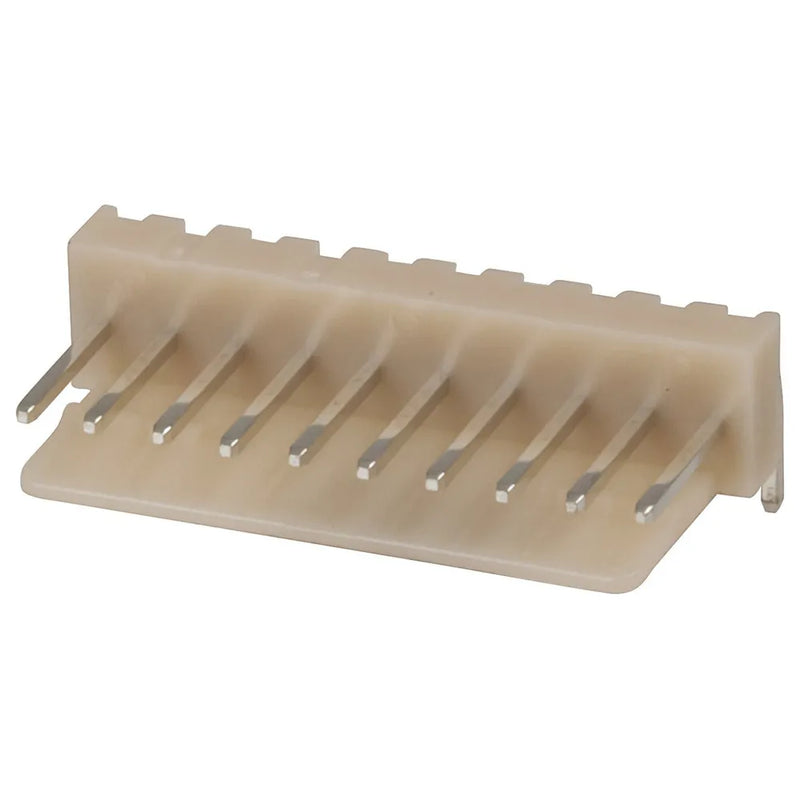

10 Pin 0.1in 90 Degree Locking Header - 2.54mm Pitch - Single
SKU HM3430
Original price
$0.89
-
Original price
$0.89
Original price
$0.89
$1.95
$1.95
-
$1.95
Current price
$1.95
A range of connectors for PCB mounting that allow circuit boards to be plugged together at right angles or end-to-end, or cables to be plugged onto circuit boards at right angles or end-on at the edge of the PCB. Both plugs and sockets may be butted up end-to-end to form connectors with any number of ways from 2 upwards.
Both plugs are wafer design into which square, tin-plated brass pins have been inserted. These pins protrude 3.4mm on one side, and should be soldered to the PCB. The nylon wafer sits on the PCB and is 3.3mm thick. The back provides locking and polarising.
Features:
Normal force: 200g min
Housing: UL 94v-0 white nylon
Temperature: 0 to +75°C
Both plugs are wafer design into which square, tin-plated brass pins have been inserted. These pins protrude 3.4mm on one side, and should be soldered to the PCB. The nylon wafer sits on the PCB and is 3.3mm thick. The back provides locking and polarising.
Features:
Normal force: 200g min
Housing: UL 94v-0 white nylon
Temperature: 0 to +75°C
Operating Temperature and Humidity
Operating Temperature | 75°C |
Header Connections
Pack Quantity | 1pc |
Number of Pins | 10pc |
Pin Size | 0.9mm |
Type | Single Row Header |
Device | Socket |
Attachment Method | Crimp |
Pin Spacing | 2.54mm (0.1") |
Insulation Dielectric Voltage Rating | 1000V |
Right Angle Mount | |
Insulation Resistance | 50MΩ |
header locking | |
header polarised | |
Mating Force | 199gg |
Contact Insertion Force | 681g |
Contact Retention to Housing | 3.63kg |
DC Voltage Rating
DC Voltage | 250V |
DC Current Rating
DC current rating | 2.5A |
Product Mounting
Mounting Method | PCB |
Product Dimensions
Width | 13.3mm |
Length | 7.6mm |
Height | 6.3mm |
Packaged Dimensions
Packaged Volume | 0.00405l |
Packaged Weight | 0.002kg |
Packaged Length | 2.7cm |
Packaged Width | 1.5cm |
Packaged Height | 1cm |
