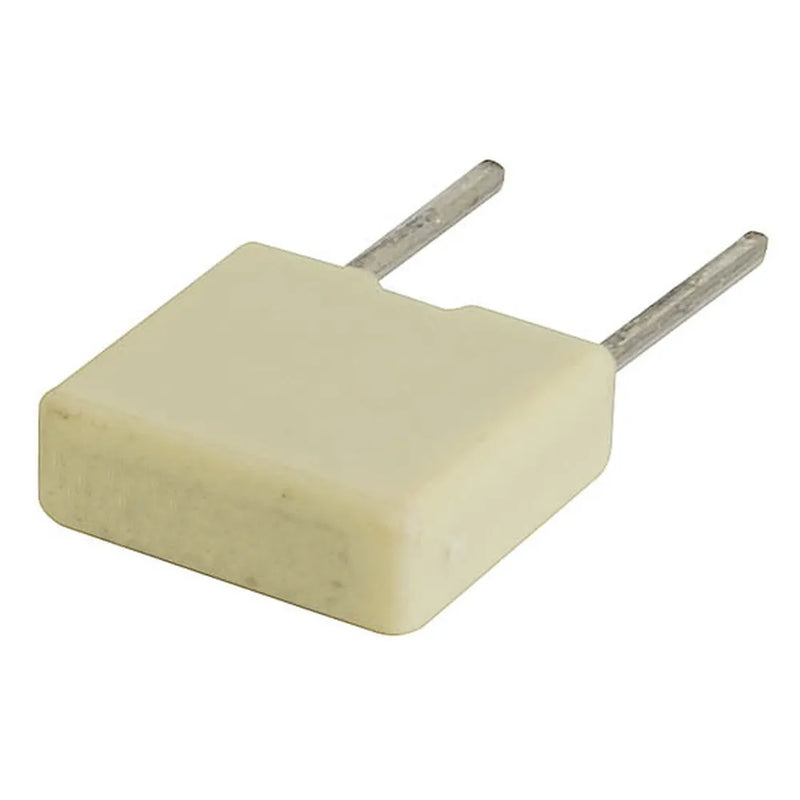

1.5nF 100VDC MKT Polyester Capacitor

SKU RM7015
Original price $0.35 - Original price $0.35
Original price
$0.35
$0.35 - $0.35
Current price $0.35

Miniature Polyester Capacitor

Metallised polyester capacitors are used in applications that require long term stability at a relatively low cost. These type offer good solidity, a large range of values at an economical price, and are the most widely used capacitor for general purpose.


Handy Tip Capactitor Types

Ceramic:
These offer low cost and high capacitance in a small physical size. Normally there are two types, the ‘High Stability Temperature Compensating’ type and the ‘Bypass and Coupling’ type. The former for use in resonant circuit and filter applications, with a value largely independent of voltage and frequency. The latter is for use in less critical applications, as they are less stable and have non-linear temperature characteristics and are somewhat voltage dependent.Polyester:
These type offer good stability, a large range of values at low cost, and are the most widely used capacitor for general purpose.Polycarbonate:
These have a low temperature coefficient, low dielectric loss at high frequency and excellent temperature stability characteristics.Polystyrene:
These offer tight tolerance and are highly stable; making them suitable for very stable tuned circuits and oscillators.Polypropylene:
This type has a very low dielectric loss and are particularly suitable in audio circuits and sample-and-hold circuits.Mylar:
This is the Du Pont tradename for polyester. They usually have an aluminium film deposit on the dielectric and are called metallised polyester.

Product Dimensions


Width
7.2mm
Height
6.5mm
Depth
2.5mm

Packaged Dimensions


Packaged Volume
4.8E-4l
Packaged Weight
0.001kg
Packaged Length
0.2cm
Packaged Width
0.8cm
Packaged Height
3cm

Capacitor


Capacitor type
MKT
Polarised Capacitor

Capacitance Rating


Item capacitance
1.5nF
Capacitance tolerance
10%

DC Voltage Rating


DC Voltage
100V

AC Voltage Rating


AC Voltage rating
40V

Passive Component


Component Type
Polyester Capacitor
Pack Quantity
1pc
Pitch
5mm
Passive mount type
Through Hole
Passive connector type
Solder Legs
Component package
MKT
Passive number of legs
2 count
Passive marking code
Number code

Product Availability


Availability
Stocked item
