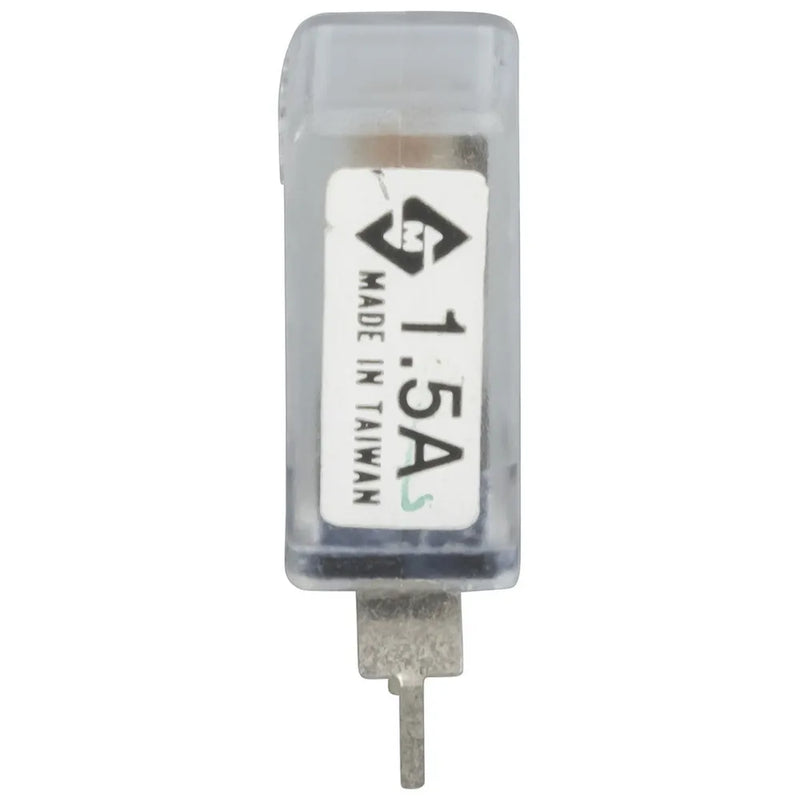

1.5A PCB Mount Thermal Circuit Breaker (SPST)

1.5A PCB Mount Thermal Circuit Breaker (SPST)

by Sydney Digital
SKU SF2281
$12.32 - $12.32
$12.32
$14.95
$14.95 - $14.95
$14.95

Solders directly into a printed circuit board. Ideal for protecting power supplies, amplifier output transistors and other appliances. Slow response time is ideal when temperamental tripping would be a nuisance.

Features:

  • Calibration (at 25¬∞C):
    100% of current rating; will not trip.
    101- 170% of current rating increasing likelihood of trip.
    175- 199% of current rating trip within 1 hour.
    200% of current rating within 1 minute.
    +200% of current rating from 1 minute to seconds.
  • Contact Resistance:¬†0.12ohms

Packaged Dimensions

Packaged Volume
 0.00189l
Packaged Weight
 0.001kg
Packaged Length
 3cm
Packaged Width
 0.7cm
Packaged Height
 0.9cm

Circuit Breakers

Circuit Breaker Type
 PCB Mount
Circuit Breaker Current
 1.5A
Circuit Breaker AC Voltage
 125V
Circuit Breaker DC Voltage
 12V
Circuit Breaker Resistance
 0.12Ω
Circuit Breaker Di-electric Strength
 1500VAC 1 Minute
Circuit Breaker Contact Endurance
 >1000 cycles, @ 150% of contact rating
Circuit Breaker Pole Count
 1 pole
