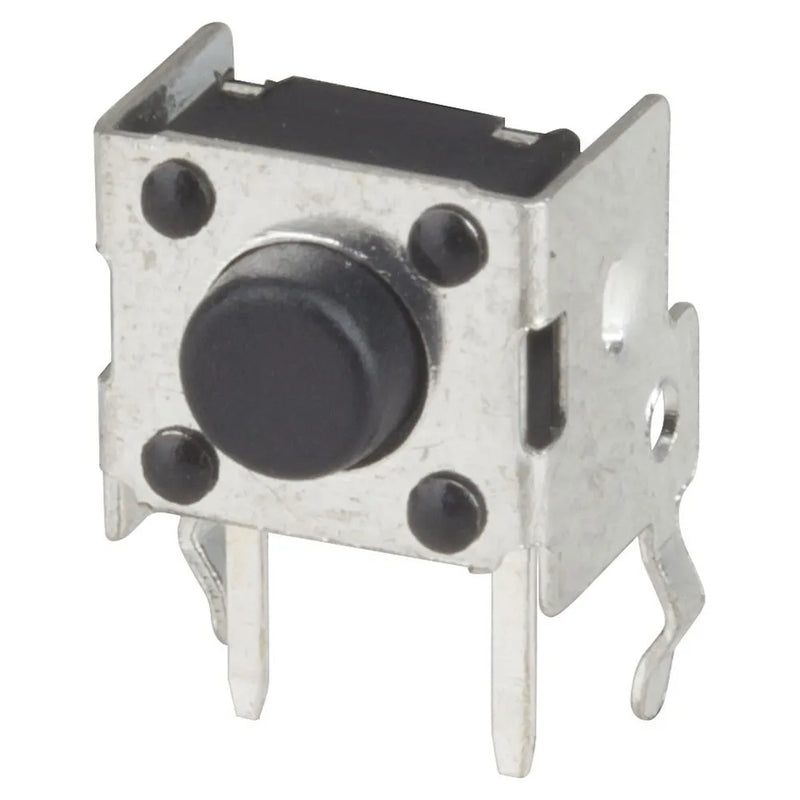

1.4mm SPST Right-Angle Micro Tactile Switch
SKU SP0605
Original price
$1.08
-
Original price
$1.08
Original price
$1.08
$1.95
$1.95
-
$1.95
Current price
$1.95
Normally open SPST right-angled micro tactile switch.
Electromechanical Switch
| Mechanism Material | Plastic |
| Switch Colour Coded | Black |
| Pole Throw Type | SPST |
| Switch Type | Tactile Pushbutton |
| Poles / Contacts | 1 pole |
| Throws / Positions | 1pos |
| Switch Connection | SMD |
| Switch Function | Single Action Momentary |
| Contact Resistance | 100mΩ |
| Insulation Resistance | 100mΩ |
| Dielectric Strength | 100V |
| Switch at Right Angles to Mount | |
| Actuator Height | 1.4mm |
| Actuator Diameter | 3.4mm |
Product Mounting
| Mounting Method | PCB |
DC Voltage Rating
| DC Voltage | 12V |
DC Current Rating
| DC current rating | 50mA |
Product Dimensions
| Width | 7.4mm |
| Height | 7.2mm |
| Depth | 6.2mm |
Packaged Dimensions
| Packaged Volume | 5.0E-4l |
| Packaged Weight | 0.001kg |
| Packaged Length | 1cm |
| Packaged Width | 0.5cm |
| Packaged Height | 1cm |
Product Availability
| Availability | Stocked item |
