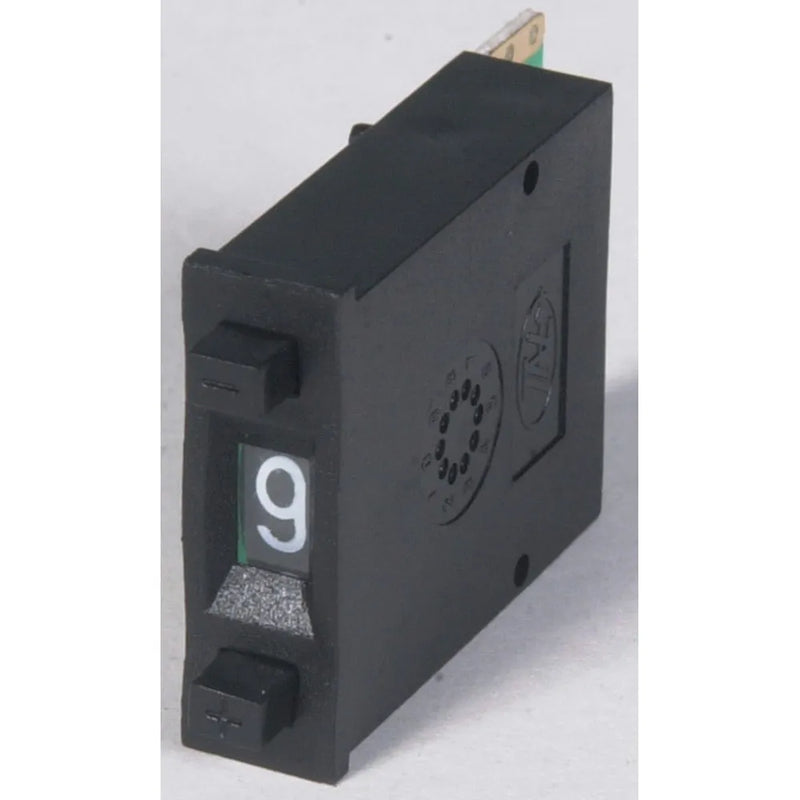

0-9 BCD Pushwheel

SKU SR1250
Original price $2.15 - Original price $2.15
Original price
$2.15
$2.15 - $2.15
Current price $2.15
These pushwheel switches can be ganged together to make any combination and can be panel mounted using the optional pair of endcaps (SR-1254). Switch positions (0 - 9) indicated via large numbers (white on black) and outputs are BCD coded. Optional spacers (SR-1256) can be ganged together to provide spacing (7.62mm each) between the switches.

Features:

Switching Current: 100mA Max
Continuous Current: 500mA Max

SR-1250 - 0 - 9 Pushwheel switch
SR-1254 - End caps to suit (pair)
SR-1256 - Spacer

Electromechanical Switch


Switch Type
Pushwheel
Mechanism Material
Plastic
Switch Colour Coded
Black
Cycle Life
100000 cycles
Contact Resistance
200Ω
Insulation Resistance
100Ω
Dielectric Strength
500V

DC Voltage Rating


DC Voltage
28V

DC Current Rating


DC current rating
500mA

AC Voltage Rating


AC Voltage rating
50V

Operating Temperature and Humidity


Operating Temperature
65°C

Packaged Dimensions


Packaged Volume
0.00651l
Packaged Weight
0.005kg
Packaged Length
0.8cm
Packaged Width
2.2cm
Packaged Height
3.7cm
Warranty: 3 Months
