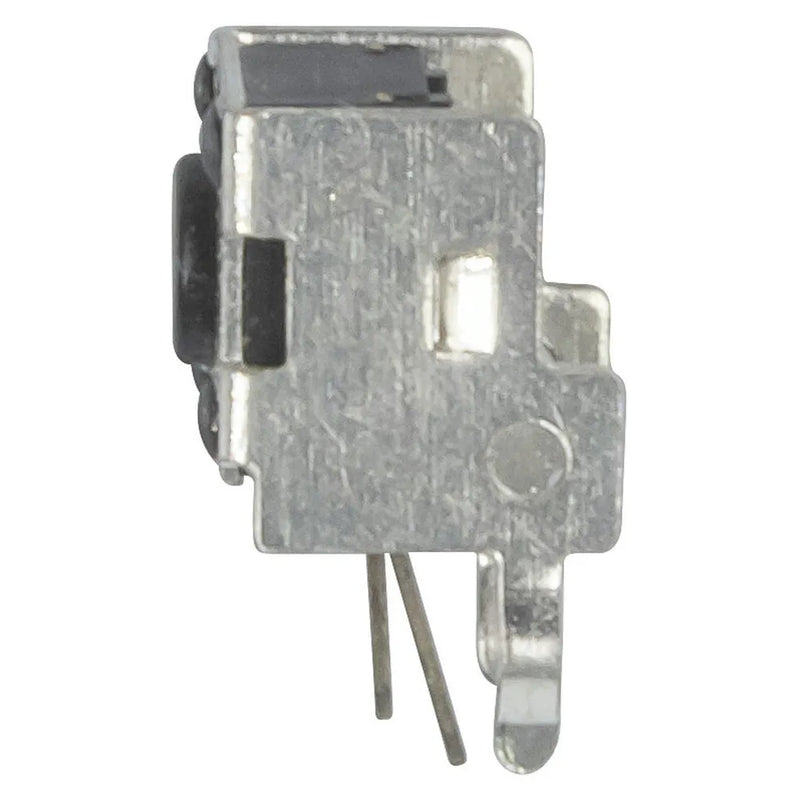

0.7mm SPST Right-Angle Micro Tactile Switch

SKU SP0604
Original price $1.40 - Original price $1.40
Original price
$1.40
$1.40 - $1.40
Current price $1.40

Normally open SPST right-angled micro tactile switch.

Actuating force: 130gf


Electromechanical Switch


Mechanism Material
Plastic
Switch Colour Coded
Black
Pole Throw Type
SPST
Switch Type
Tactile Pushbutton
Poles / Contacts
1 pole
Throws / Positions
1pos
Switch Connection
Solder Legs
Switch Function
Single Action Momentary
Contact Resistance
100mΩ
Insulation Resistance
100mΩ
Dielectric Strength
100V
Actuator Height
0.7mm
Actuator Diameter
3.4mm

Product Mounting


Mounting Method
PCB

DC Voltage Rating


DC Voltage
12V

DC Current Rating


DC current rating
50mA

Product Dimensions


Height
7.2mm
Width
7.4mm
Depth
6.2mm

Packaged Dimensions


Packaged Volume
0l
Packaged Weight
0.002kg
Packaged Length
0.5cm
Packaged Width
0.5cm
Packaged Height
1cm

Product Availability


Availability
Stocked item
