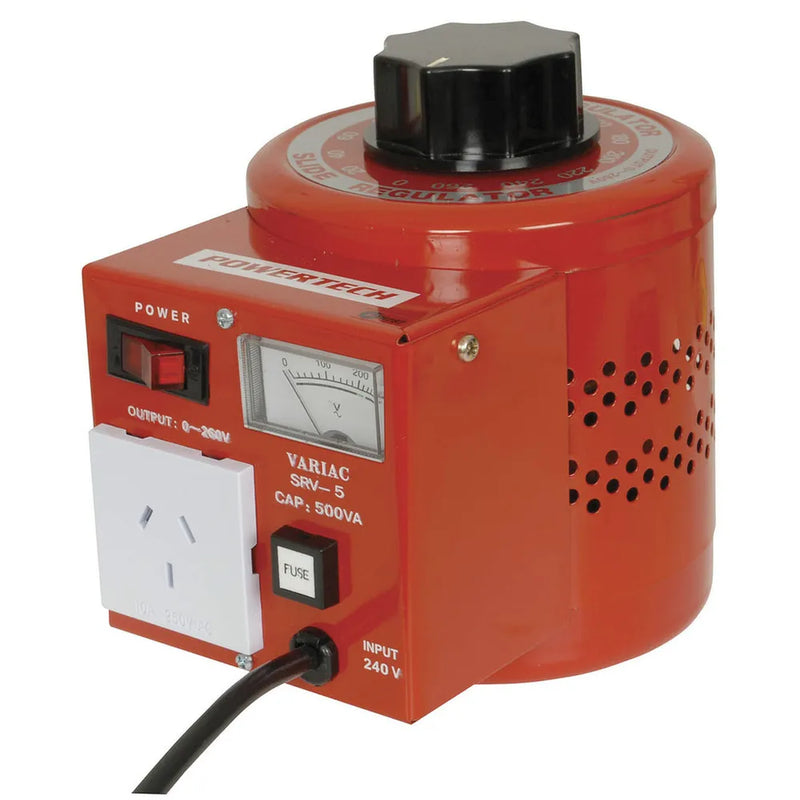

0-260VAC Variable Laboratory Autotransfomer (Variac) - 500VA

SKU MP3080
Original price $279.00 - Original price $279.00
Original price
$279.00
$279.00 - $279.00
Current price $279.00
The variable autotransformer (Variac is the trade name of a popular brand) is one of the most useful and efficient devices ever invented for the control of AC votage and of voltage dependent parameters such as current, power, temperature, light intensity, motor speed etc. It enables the AC input to a mains powered appliance to be easily varied from 0 to full line voltage (or greater) max 3 amps. Encased in heavy-duty steel housing it also features on/off switch, output-voltage meter, mains-supply lead and standard 3-pin power output. A must for testing appliance performance under real (simulated) mains fluctuations.

Now supplied with slow blow fuses for extra reliability.


Power Supply Units


Type of Power Supply
laboratory
Output Connection
Mains AU/NZ 3 Pin
Number of Outputs
1pc

AC Voltage Rating


AC Voltage rating
0V, 260V
AC Frequency
50Hz

Mains powered


Max Input Power
500VA
Mains Voltage Range
240V, 50V
Frequency
50Hz
Mains Item connection
Hard Wired

Product Dimensions


Depth
165mm
Width
120mm
Height
160mm

Packaged Dimensions


Packaged Volume
10.112128l
Packaged Weight
4.62kg
Packaged Length
20.8cm
Packaged Width
20.6cm
Packaged Height
23.6cm

Product Availability


Availability
Stocked item
