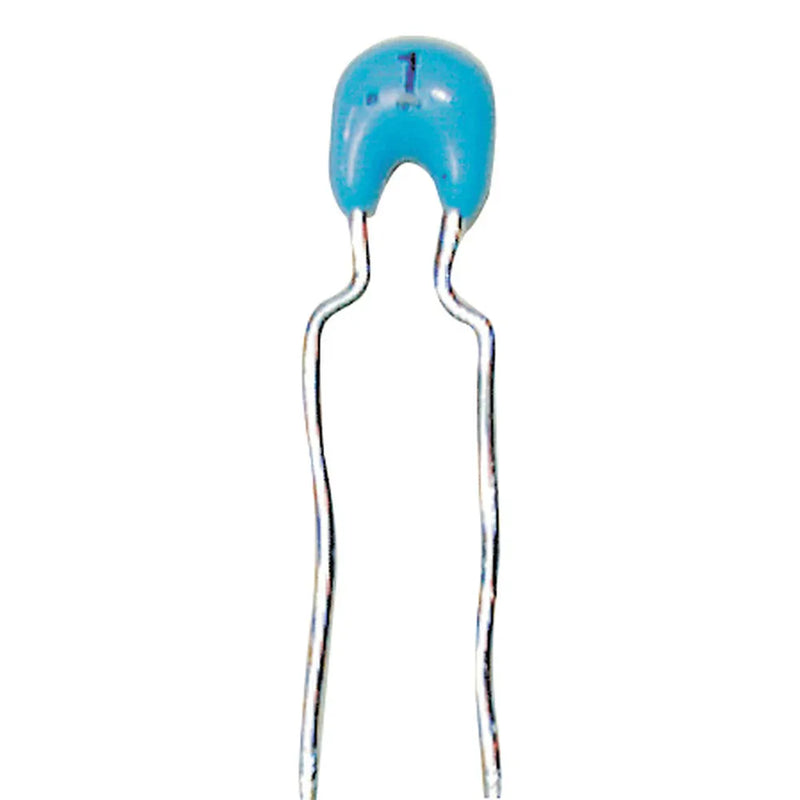

0.1uF 50V Blue Chip Monolithic Capacitor - Pack of 100

SKU RC5496
Original price $11.88 - Original price $11.88
Original price $11.88
$14.95
$14.95 - $14.95
Current price $14.95
A monolithic ceramic capacitor consists of thin dielectric layers interleaved with staggered metal-film electrodes; after leads are connected to alternate projecting ends of the electrodes, the assembly is compressed and sintered to form a solid monolithic block. Monolithic capacitors are generally used as their compact dimensions are desired for high density applications with limited space.

Handy Tip Capactitor Types

Ceramic:
These offer low cost and high capacitance in a small physical size. Normally there are two types, the ‘High Stability Temperature Compensating’ type and the ‘Bypass and Coupling’ type. The former for use in resonant circuit and filter applications, with a value largely independent of voltage and frequency. The latter is for use in less critical applications, as they are less stable and have non-linear temperature characteristics and are somewhat voltage dependent.Polyester:
These type offer good stability, a large range of values at low cost, and are the most widely used capacitor for general purpose.Polycarbonate:
These have a low temperature coefficient, low dielectric loss at high frequency and excellent temperature stability characteristics.Polystyrene:
These offer tight tolerance and are highly stable; making them suitable for very stable tuned circuits and oscillators.Polypropylene:
This type has a very low dielectric loss and are particularly suitable in audio circuits and sample-and-hold circuits.Mylar:
This is the Du Pont tradename for polyester. They usually have an aluminium film deposit on the dielectric and are called metallised polyester.

Packaged Dimensions


Packaged Volume
0.09l
Packaged Weight
0.013kg
Packaged Length
12cm
Packaged Width
5cm
Packaged Height
1.5cm

Capacitor


Capacitor type
Monolithic
Polarised Capacitor

Capacitance Rating


Item capacitance
0.1µF

DC Voltage Rating


DC Voltage
50V

Passive Component


Component Type
Ceramic Capacitor
Pack Quantity
100pc
Pitch
5mm
Passive mount type
Through Hole
Passive connector type
Solder Legs
Component package
Epoxy Dip
Passive number of legs
2 count
Passive marking code
Number code

Product Availability


Availability
Stocked item
