0- 1mA MU45 Panel Meter - Moving Coil Type
SKU QP5010
Original price
$16.69
-
Original price
$16.69
Original price
$16.69
$20.95
$20.95
-
$20.95
Current price
$20.95
Class 2.5
Features:
- Nuts and washers supplied.
- Coil Resistance: 200ohm

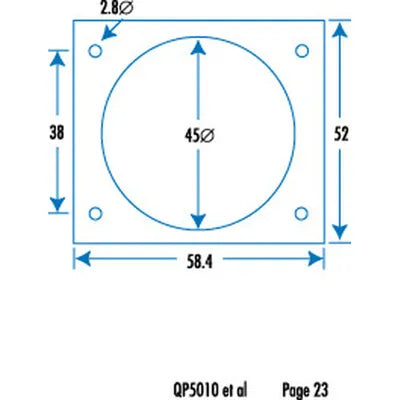

Product Dimensions
| Width | 58mm |
| Height | 52mm |
Packaged Dimensions
| Packaged Volume | 0.24394l |
| Packaged Weight | 0.04kg |
| Packaged Length | 6.6cm |
| Packaged Width | 6.6cm |
| Packaged Height | 5.6cm |
Measures Current DC
| Current DC Measuring Range | 1mA, 1mA |
Product Mounting
| Mounting Method | Wall Hang |
| Attachment / Securing Method | Collar / Nut |
| Round Mount Hole Diameter | 38mm |
| Min Mount Panel Thickness | 44mm |
